Baumanflex (metal coil spring coupling) MF (Miki Pulley Thailand)

The Baumann Flex Coupling MF utilizes a 3-layer structure of metal coil springs, enabling high torque transmission in a compact size. This model is designed with a flange structure on one hub to meet a broader range of needs. The hub material is equivalent to SUM24L, and the coil spring material is piano wire, providing high durability and reliability. It adapts to various applications in mechanical design, making it ideal for printing machines, bookbinding machines, woodworking machines, and semiconductor manufacturing equipment.
Features
High Durability: The hub is made of material equivalent to SUM24L, and the coil springs are made of piano wire, ensuring high durability.
High Torque Transmission: The 3-layer metal coil spring structure enables high torque transmission in a compact size.
Flange Design: One hub features a flange design, making installation easy and supporting versatile applications.
Compact Design: Small size design allows installation in limited spaces.
High Precision Power Transmission: Achieves stable power transmission with high precision.
Specifications
Model: MF
Torque Range: 10 to 500 N·m
Operating Temperature Range: -30°C to +120°C
Element Used: Metal coil springs
Mounting Method: Flange design
Maximum Rotation Speed: 6,000 min⁻¹
Shaft Misalignment Absorption Range: Parallel misalignment: ±0.2 mm, Angular misalignment: ±2°
Applications
Printing Machines: Equipment requiring high precision power transmission
Bookbinding Machines: Machines requiring high-speed and stable operation
Woodworking Machines: Processing machines requiring high tension usage
Semiconductor Manufacturing Equipment: Devices requiring precise control and high durability
Machine Tools: Machines requiring high precision power transmission
Testing Equipment: Testing devices requiring accurate power transmission and vibration absorption
The Baumann Flex Coupling MF, with its 3-layer metal coil spring structure and flange design, is a high durability coupling suitable for versatile applications. It is an optimal choice for mechanical design.

Category

Machine & Mechanical Parts > Power Transmission Components > Coupling

CONTACT

Contact Form

Name*
Company Name*
Country*
Department
Position
Email Address*
Phone Number
Business Category
motive ※
the purpose ※
Information you want to know ※
Time of introduction ※
Other company's products
Inquiry Content ※
File Attachment
Image files (JPEG, PNG, GIF), PDF files, Compressed files (ZIP, LZH) (Maximum 10MB)
Consent Regarding the Handling of Personal Information ※

NC Network Co., Ltd. complies with laws, regulations, and other standards related to the handling of personal information, and takes the utmost care to properly manage and protect personal information so that users can use our services comfortably and with peace of mind.

We also conduct periodic audits and inspections of our compliance program and personal information protection system and make continuous improvements. We take reasonable preventive and corrective measures against internal and external risks such as unauthorized access, loss, destruction, falsification, and leakage of all personal information. The following outlines how NC Network handles personal information.

Purpose of Use

The personal information you provide will be used by NC Network for the following purposes and will not be used for any other purpose.

  • To ensure smooth commercial transactions conducted through NC Network
  • For distributing email newsletters
  • For surveys regarding usage status and environment, and for preparing statistical materials aimed at improving NC Network services
  • For identity verification during user support

Disclosure of Personal Information to Third Parties

As a general rule, NC Network will not disclose the personal information you provide to third parties. However, exceptions apply in the following cases.

  • When the user has given prior consent for the disclosure of personal information
  • When NC Network determines that it is necessary to protect its rights, property, or services due to actions by the user that violate the Terms of Use or other regulations
  • When there is an imminent danger to someone's life, body, or property and urgent action is required
  • When formal inquiries are received from courts, police, or other public institutions based on applicable laws
  • When disclosure or provision is required under applicable laws and regulations

Disclosure, Correction, and Deletion of Personal Information

In principle, NC Network allows users to view their registered information at any time. These reference screens serve as the procedures for the disclosure, correction, and deletion of personal information. Users may also apply for withdrawal at any time to delete their registered personal information.

Privacy Policy Revisions

To continue protecting users’ personal information, NC Network may revise all or part of this privacy policy without prior notice to users. Any significant changes will be announced on the NC Network website.

Inquiries Regarding Personal Information

For other inquiries regarding personal information, please contact us by email or telephone at the contact information below.

Online Contact

+66-2-254-1801 (Support Hours: 9:00–18:00)

Please read and agree to the Terms of Use and Privacy Policy before submitting.
Precautions

Acts such as advertising or promotion using the inquiry form are prohibited by our terms of service. If discovered or reported, your use may be suspended. Please be aware of this in advance.

The questionnaire content and contact information will also be notified to selected exhibitors.

Company Information

MIKI PULLEY (THAI) CO., LTD.

MIKI PULLEY (THAI) CO., LTD.

View Details Contact
Main 3 Products

Coupling (shaft coupling) / Friction fasteners / Electromagnetic clutch/electromagnetic b

Phone Number

Display phone number

At MIKIPULLEY, we are dedicated to manufacturing - combining our passion for power transmission control equipment, the technology we have cultivated, and our proactive spirit to adapt to the times and ...

Related Catalogs

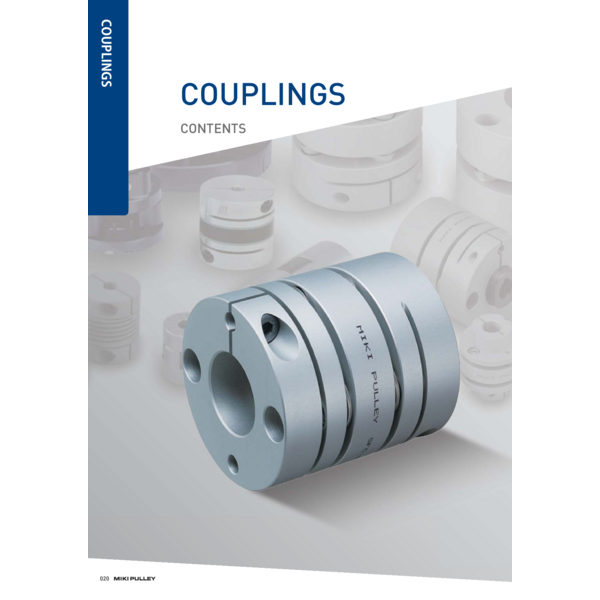

BAUMANNFLEX
