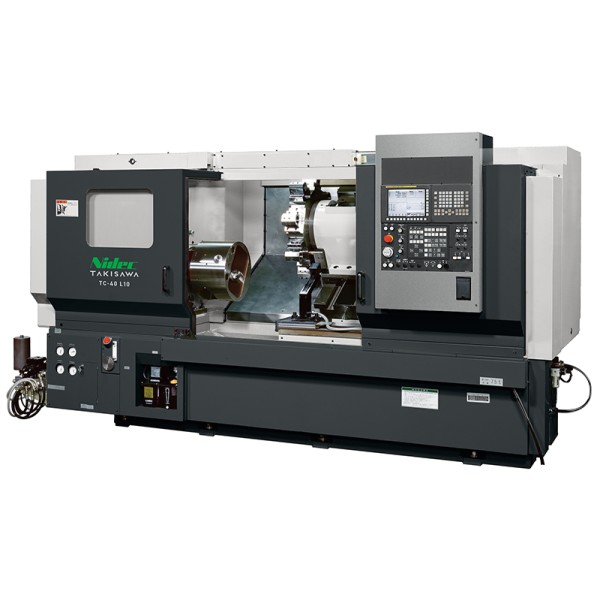

High-Rigidity 12-Inch Chuck CNC Lathe TC-40 L10

The TC-40 L10 is a high-rigidity CNC lathe with a 12-inch chuck, provided by TAKISAWA. Its robust bed design allows for heavy-duty cutting while maintaining high-precision finishes. It is ideal for manufacturing automotive, industrial machinery, and aerospace components.
■ Features
- High-Rigidity Design: A sturdy bed structure ensures stability under heavy cutting conditions.
- Large-Diameter Machining Capability: The 12-inch chuck supports medium- to large-sized parts.
- High-Precision Spindle: Maintains accuracy even during extended machining operations.
- Versatile Applications: Suitable for shaft machining, flange machining, and other diverse applications.
- Automation Compatibility: Compatible with robots and loaders for enhanced automation.
■ Specifications
- Chuck Size: 12 inches
- Turret Type: 8-station turret (direct mount) / 10-station turret (direct mount) / 12-station turret (direct mount)
- Maximum Machining Diameter: φ450mm (8-station turret) / φ420mm (12-station turret)
- Maximum Machining Length: 1020mm
- Bar Work Diameter: φ89mm
- Spindle Speed: 2500 min⁻¹
- Rapid Traverse Speed: X-axis: 12m/min / Z-axis: 16m/min
- Spindle Motor Power (30 min/Continuous): 18.5/15kW (Options: 22/18.5kW, 26/22kW)
- Machine Height: 1920mm
- Required Floor Space: 2100×3500mm
- Machine Weight: 7500kg
■ Applications
- Precision machining of automotive components
- Heavy-duty cutting of industrial machinery parts
- High-precision manufacturing of aerospace components
- High-accuracy machining of medium- to large-sized parts
The TC-40 L10 combines rigidity and precision, contributing to increased productivity in large-part machining.
■ For more details, please download the PDF or feel free to contact us.
