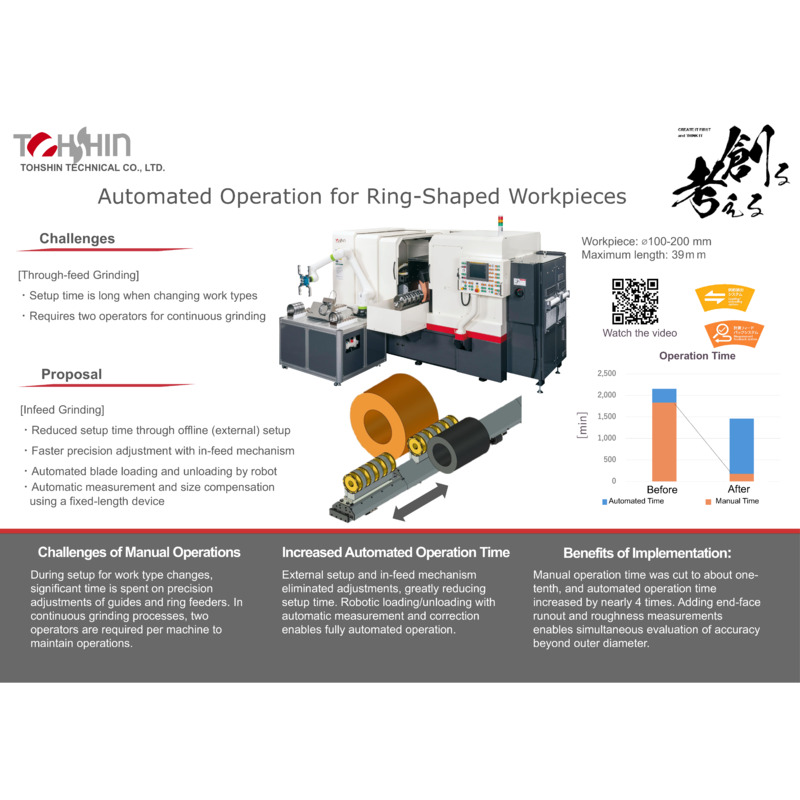

【Bearing Outer Ring】Unmanned Operation, Skill-less, Labor-Saving Grinding Case Study

Precision automation for ring grinding.

This TOHSHIN TECHNICAL CO., LTD. catalog introduces an automated infeed grinding system for bearing outer rings (Ø100-200 mm, max length 39 mm), designed for unmanned, skill-less, and labor-saving operation. It addresses traditional grinding challenges like long setup times and the need for two operators. The system's features include reduced setup time via offline setup, faster precision adjustment with an in-feed mechanism, and robotic loading/unloading. Technical details involve automatic measurement and size compensation using a fixed-length device. It also evaluates accuracy beyond the outer diameter by measuring end-face runout and roughness. Implementation significantly cuts manual operation time to one-tenth and boosts automated operation time nearly fourfold, realizing substantial efficiency gains.
