TOP HANEDA (THAILAND) CO., LTD. Technology/Service List Carbide Center Wear-Resistant Live & Dead Centers with ±0.01 mm Runout Accuracy
  • Carbide Center Wear-Resistant Live & Dead Centers with ±0.01 mm Runout Accuracy

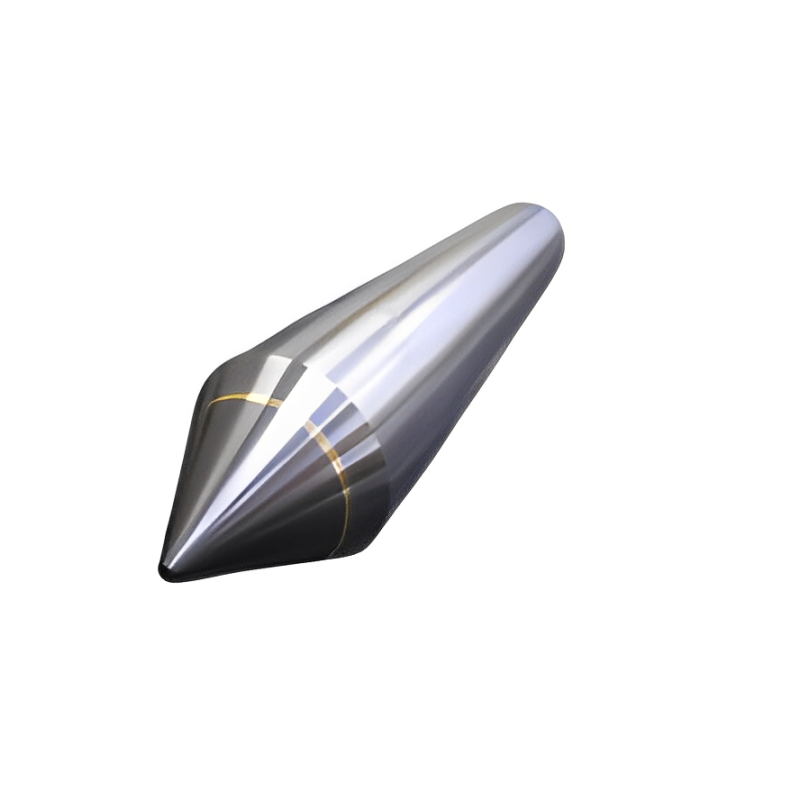

Carbide Center Wear-Resistant Live & Dead Centers with ±0.01 mm Runout Accuracy

Carbide centers are essential for stable, high-precision turning and grinding. HANEDA (Thailand) manufactures custom carbide centers with ultra-hard tips and ±0.01 mm runout precision, ensuring long-lasting performance under continuous or high-load operations in CNC lathes and grinders.

■ High-Hardness Centers for Consistent Machining Precision
In turning and cylindrical grinding, the center’s accuracy directly impacts roundness, vibration, and surface finish. Carbide-tipped centers provide outstanding wear resistance and long tool life. HANEDA’s locally produced carbide centers are customizable for various lathe types and operating loads.

■ Technical Features
・ Ultra-hard carbide tip (HRA 86–92)
・ Compatible with live and dead center applications
・ Runout accuracy: ±0.01 mm (adjustable per need)
・ Tip angles: 60°, 90°, or custom specifications
・ Supports workpiece diameters: Ø5–150 mm
・ Suitable for continuous operation and high-load machining

■ Product Specs
・ Standard 60° tip; custom shank length & shape
・ Optional: anti-slip grooves for rigid holding
・ Available in high-precision models for fine grinding
・ Designed for compatibility with DIN / JIS standards

■ Production Process
1. Customer drawing or spec review
2. Material selection (carbide + shank)
3. Tip assembly via brazing or press-fit
4. Turning + precision grinding
5. Final inspection (CMM, microscope) with runout report

■ Recommended Applications
・ Shaft holding in CNC turning centers
・ Dead-center support in cylindrical grinders
・ Mass production of rods, axles, or hardened shafts
・ Long-term machining with high load or high contact pressure

■ Why Choose HANEDA (Thailand)?
・ Guaranteed ±0.01 mm runout with full inspection
・ Japanese-standard quality control with local production benefits
・ Support for both custom specs and global standards
・ Scalable production: small to large batches with fast delivery

■　For more details, please download the PDF or feel free to contact us.
