High-Performance Inverter V7 | Miki Pulley Thailand

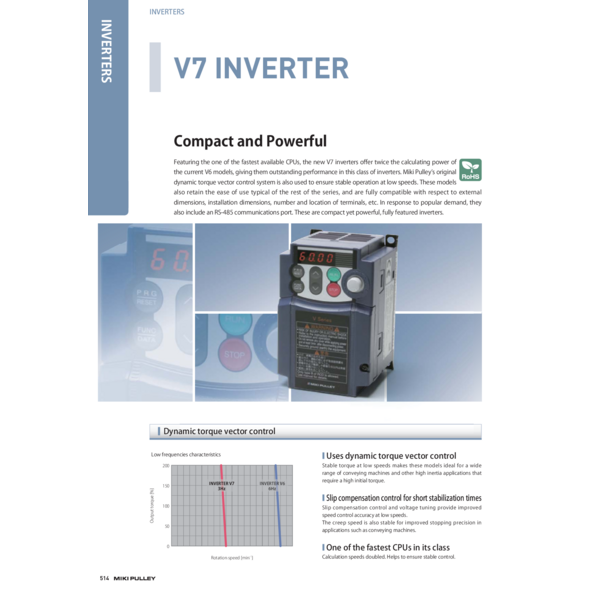

Miki Pulley's V7 inverter is a high-performance inverter with double the processing power of the previous V6 model. Featuring the fastest level CPU and proprietary dynamic torque vector control, it ensures stable operation even at low speeds. It retains the user-friendly series design, with complete compatibility in dimensions, installation dimensions, number and position of terminals. Additionally, it comes standard with the highly requested RS-485 communication port, making it a compact and high-performance inverter suitable for a wide range of applications.
Features
- High-Performance CPU: Equipped with a high-performance CPU that delivers double the processing power compared to the previous V6 model, achieving more advanced control.
- Dynamic Torque Vector Control: Proprietary control method ensures stable operation even at low speeds.
- Fully Compatible Design: Dimensions, installation dimensions, number and position of terminals are compatible with previous models, making it easy to integrate into existing systems.
- Standard RS-485 Communication Port: Enhanced communication functions allow for remote operation and monitoring.
- Versatile Applications: Stable torque at low speeds makes it suitable for a wide range of applications, including high-inertia loads and transport machinery that require high starting torque.
Specifications
Control Method: Dynamic torque vector control
Motor Output:
Supports 0.1kW to 3.7kW
Low-Frequency Characteristics: 3Hz
Communication: Standard RS-485 communication port
Cooling Method: Self-cooling or fan-cooled
Operating Temperature Range: -10℃ to 50℃
Dimensions:
0.1kW model: 80mm x 120mm
0.2kW model: 80mm x 120mm
0.4kW model: 95mm x 120mm
0.75kW model: 120mm x 120mm
1.5kW model: 130mm x 118mm
2.2kW model: 130mm x 118mm
3.7kW model: 140mm x 168mm
Weight: 0.6kg to 2.5kg (varies by model)
Protection Structure: IP20
Certifications: UL508C, IEC 61800-5-1:2007
Applications
- Food Machinery: Achieves precise transport due to stable torque at low speeds.
- Printing Machines: Improves print quality with high-precision speed control.
- Textile Machinery: Suitable for delicate operations required in textile processing.
- Paper Machinery: Ideal for synchronous control of various drive systems.
- Bookbinding Machines: Supports synchronous operation of collators and binders.
- Packaging Machines: Enables synchronous operation of rotary cutters and films.
- Others: Applicable to high-inertia loads and transport machinery requiring high starting torque.
The V7 inverter is the ideal solution for achieving high-performance control and easy operation. It supports a wide range of applications and ensures efficient operation.
