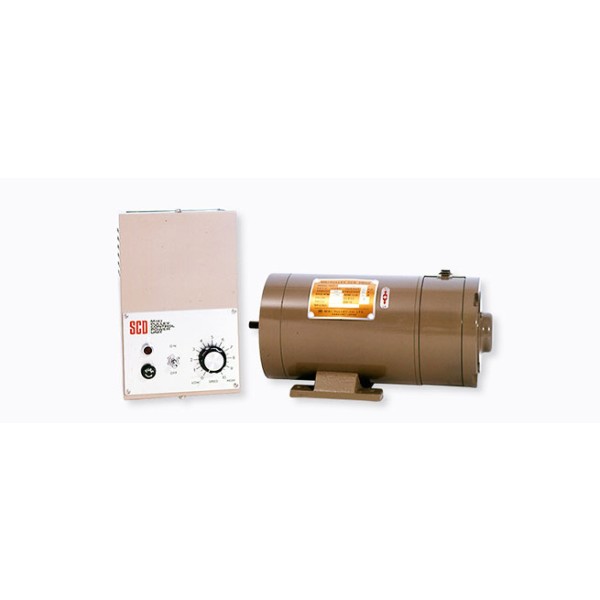

High-Performance SCD Series｜ Miki Pulley Thailand
Miki Pulley's SCD series is a high-functionality DC motor that uses standard 100V or 200V AC power and ensures stable operation regardless of 50Hz or 60Hz frequencies. Speed setting is easily performed via the control panel's speed setter, allowing for arbitrary speed selection. The motor is equipped with a tachogenerator, enabling feedback control for high rotational accuracy. It is suitable for a wide range of applications, including optical equipment, semiconductor manufacturing devices, food machinery, and inspection equipment.
Features
- Compatible with AC Power: Can be used with a 100V or 200V AC power supply, operable at both 50Hz and 60Hz frequencies.
- Feedback Control: Tachogenerator enables feedback control, achieving high-precision rotational speed control.
- Easy Speed Setting: Arbitrary speed can be easily selected via the control panel's speed setter.
- High Safety: Current limit circuits and fuses prevent overload during startup and operation.
- High Rotational Accuracy: Maintains high rotational accuracy (±2%) with constant voltage circuit, load compensation circuit, and magnetic field temperature compensation circuit.
Specifications
Rated Output: 0.1kW to 3.7kW
Power Supply Voltage: Single-phase 100V or 200V, 50/60Hz
Speed Range:
0 to 2500min⁻¹ (0.1kW to 1.5kW)
0 to 1750min⁻¹ (2.2kW to 3.7kW)
Speed Variation Range:
80 to 2500min⁻¹ (0.1kW to 1.5kW)
60 to 1750min⁻¹ (2.2kW to 3.7kW)
Rotational Accuracy: ±2%
Control Method: Constant voltage control, IR compensation, magnetic field temperature compensation
Protection Functions: Current limit circuit, fuse
Operating Temperature Range: -10℃ to 50℃
Material: Fully enclosed, drip-proof type
Applications
- Optical Equipment: Ensures stable operation of optical equipment with high-precision rotational speed control.
- Semiconductor Manufacturing Devices: Ideal for semiconductor manufacturing devices that require precise control.
- Food Machinery: High safety and accuracy make it suitable for food processing and packaging environments.
- Inspection Equipment: Ideal for inspection equipment that requires precise rotational speed management.
The SCD series is a high-precision feedback control motor that can be used with AC power. It offers high rotational accuracy and easy operation, making it suitable for a wide range of applications.
