Brake Motor with Internal Non-Excitation Brake BMS Model (Miki Pulley Thailand)

Miki Pulley's brake motor BMS model incorporates an internal non-excitation brake and a compact power supply without changing the dimensions of a general-purpose motor. When the power is on, the motor shaft rotates, and when the current is cut off, the motor shaft stops. As a non-excitation brake model, it also supports emergency braking during power outages. Additionally, it has a release lever, allowing manual brake release even when the power is off. It is ideal for printing machines, binding machines, food machinery, packaging machinery, and medical devices.
Features
- Internal Non-Excitation Brake: The motor shaft rotates when the power is on and stops when the current is cut off.
- No Dimensional Changes: Easy installation without altering the dimensions of a general-purpose motor.
- Emergency Braking: Automatically stops the motor shaft during power outages.
- Release Lever: Allows manual brake release.
- Long Life Design: Large friction area ensures long brake life.
- Quiet Operation: Rotating parts are fully integrated with the motor shaft, enabling quiet operation.
Specifications
Output: 0.2kW, 0.4kW, 0.75kW, 1.5kW
Torque: 2N·m, 4N·m, 8N·m, 15N·m
Voltage: DC90V
Motor Rotation Speed: 4 poles, 50Hz / 60Hz
Operating Environment: -10℃ to +40℃
Weight: 0.2kW model: 7.5kg, 0.4kW model: 10.5kg, 0.75kW model: 16.5kg, 1.5kW model: 23kg
Applications
Printing Machines: Supports high-speed, high-precision printing.
Binding Machines: Ensures stable binding operations.
Food Machinery: Supports hygienic and efficient food processing.
Packaging Machinery: Enables high-speed, accurate packaging operations.
Medical Devices: Supports reliable operation of medical equipment.
Miki Pulley's brake motor BMS model provides high reliability and safety, making it the ideal choice for various industrial machines.

Category

Electric Motors & Generators > AC Motor > Motor with Brake

CONTACT

Contact Form

Name*
Company Name*
Country*
Department
Position
Email Address*
Phone Number
Business Category
motive ※
the purpose ※
Information you want to know ※
Time of introduction ※
Other company's products
Inquiry Content ※
File Attachment
Image files (JPEG, PNG, GIF), PDF files, Compressed files (ZIP, LZH) (Maximum 10MB)
Consent Regarding the Handling of Personal Information ※

NC Network Co., Ltd. complies with laws, regulations, and other standards related to the handling of personal information, and takes the utmost care to properly manage and protect personal information so that users can use our services comfortably and with peace of mind.

We also conduct periodic audits and inspections of our compliance program and personal information protection system and make continuous improvements. We take reasonable preventive and corrective measures against internal and external risks such as unauthorized access, loss, destruction, falsification, and leakage of all personal information. The following outlines how NC Network handles personal information.

Purpose of Use

The personal information you provide will be used by NC Network for the following purposes and will not be used for any other purpose.

  • To ensure smooth commercial transactions conducted through NC Network
  • For distributing email newsletters
  • For surveys regarding usage status and environment, and for preparing statistical materials aimed at improving NC Network services
  • For identity verification during user support

Disclosure of Personal Information to Third Parties

As a general rule, NC Network will not disclose the personal information you provide to third parties. However, exceptions apply in the following cases.

  • When the user has given prior consent for the disclosure of personal information
  • When NC Network determines that it is necessary to protect its rights, property, or services due to actions by the user that violate the Terms of Use or other regulations
  • When there is an imminent danger to someone's life, body, or property and urgent action is required
  • When formal inquiries are received from courts, police, or other public institutions based on applicable laws
  • When disclosure or provision is required under applicable laws and regulations

Disclosure, Correction, and Deletion of Personal Information

In principle, NC Network allows users to view their registered information at any time. These reference screens serve as the procedures for the disclosure, correction, and deletion of personal information. Users may also apply for withdrawal at any time to delete their registered personal information.

Privacy Policy Revisions

To continue protecting users’ personal information, NC Network may revise all or part of this privacy policy without prior notice to users. Any significant changes will be announced on the NC Network website.

Inquiries Regarding Personal Information

For other inquiries regarding personal information, please contact us by email or telephone at the contact information below.

Online Contact

+66-2-254-1801 (Support Hours: 9:00–18:00)

Please read and agree to the Terms of Use and Privacy Policy before submitting.
Precautions

Acts such as advertising or promotion using the inquiry form are prohibited by our terms of service. If discovered or reported, your use may be suspended. Please be aware of this in advance.

The questionnaire content and contact information will also be notified to selected exhibitors.

Company Information

MIKI PULLEY (THAI) CO., LTD.

MIKI PULLEY (THAI) CO., LTD.

View Details Contact
Main 3 Products

Coupling (shaft coupling) / Friction fasteners / Electromagnetic clutch/electromagnetic b

Phone Number

Display phone number

At MIKIPULLEY, we are dedicated to manufacturing - combining our passion for power transmission control equipment, the technology we have cultivated, and our proactive spirit to adapt to the times and ...

Related Catalogs

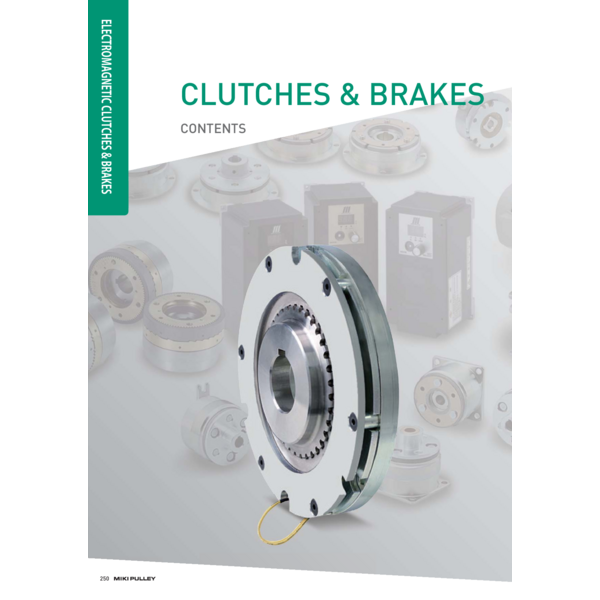

BRAKE MOTORS
