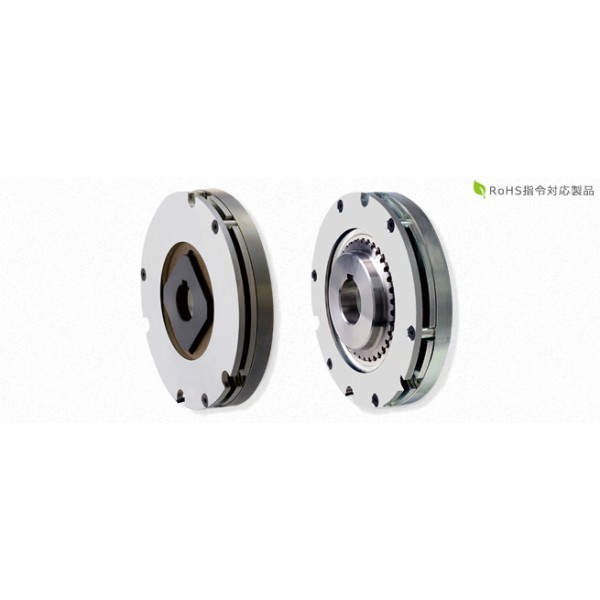

Ultra-Thin Design Electromagnetic Release Brake BXR: Ideal for Servo Motors (Miki Pulley Thailand)

The Electromagnetic Release Brake BXR is a holding and emergency brake designed to save space by reducing its thickness to 2/3 of conventional designs. The lightweight rotor significantly reduces idling wear and, with low inertia, it can be integrated without compromising the responsiveness of servo motors. This brake performs excellently in a wide range of applications, including various motors, articulated robots, and medical equipment.
Features
- Ultra-Thin Design: Reduced to 2/3 the thickness of conventional designs, allowing installation in limited spaces.
- Lightweight: The lightweight rotor reduces idling wear and extends the lifespan.
- Low Inertia: Allows integration without compromising the responsiveness of servo motors.
- Quiet Operation: Reduces friction noise, providing a quiet operating environment.
- High Installation Flexibility: Eliminates obstructive protrusions, making installation easy.
Specifications
Model: BXR
Brake Torque: 5 to 55 N·m
Operating Temperature Range: -10°C to +40°C
Friction Material: Wear-resistant material
Mounting Method: Standard mounting
Static Friction Torque: Stable high torque
Moment of Inertia: Low inertia design
Applications
Various Motors: Braking for industrial and household motors
Articulated Robots: Precise braking needed for robot arms
Medical Equipment: Quiet operation essential for medical devices
Machine Tools: High-precision braking required for machinery
Forklifts: Safe braking needed for transport equipment
Aerial Work Platforms: Safety-required work vehicles
Hoists: Stable braking needed for lifting machines
Electric Carts: Quiet braking required for transportation means
Electric Shutters: Durability and quiet operation required for doors
Wind Turbines: Braking devices enduring long-term use
The Electromagnetic Release Brake BXR offers high responsiveness and low inertia through its ultra-thin and lightweight design, making it suitable for a variety of applications, especially servo motors.

Category

Machine & Mechanical Parts > Power Transmission Components > Clutch and Brake

CONTACT

Contact Form

Name*
Company Name*
Country*
Department
Position
Email Address*
Phone Number
Business Category
motive ※
the purpose ※
Information you want to know ※
Time of introduction ※
Other company's products
Inquiry Content ※
File Attachment
Image files (JPEG, PNG, GIF), PDF files, Compressed files (ZIP, LZH) (Maximum 10MB)
Consent Regarding the Handling of Personal Information ※

NC Network Co., Ltd. complies with laws, regulations, and other standards related to the handling of personal information, and takes the utmost care to properly manage and protect personal information so that users can use our services comfortably and with peace of mind.

We also conduct periodic audits and inspections of our compliance program and personal information protection system and make continuous improvements. We take reasonable preventive and corrective measures against internal and external risks such as unauthorized access, loss, destruction, falsification, and leakage of all personal information. The following outlines how NC Network handles personal information.

Purpose of Use

The personal information you provide will be used by NC Network for the following purposes and will not be used for any other purpose.

  • To ensure smooth commercial transactions conducted through NC Network
  • For distributing email newsletters
  • For surveys regarding usage status and environment, and for preparing statistical materials aimed at improving NC Network services
  • For identity verification during user support

Disclosure of Personal Information to Third Parties

As a general rule, NC Network will not disclose the personal information you provide to third parties. However, exceptions apply in the following cases.

  • When the user has given prior consent for the disclosure of personal information
  • When NC Network determines that it is necessary to protect its rights, property, or services due to actions by the user that violate the Terms of Use or other regulations
  • When there is an imminent danger to someone's life, body, or property and urgent action is required
  • When formal inquiries are received from courts, police, or other public institutions based on applicable laws
  • When disclosure or provision is required under applicable laws and regulations

Disclosure, Correction, and Deletion of Personal Information

In principle, NC Network allows users to view their registered information at any time. These reference screens serve as the procedures for the disclosure, correction, and deletion of personal information. Users may also apply for withdrawal at any time to delete their registered personal information.

Privacy Policy Revisions

To continue protecting users’ personal information, NC Network may revise all or part of this privacy policy without prior notice to users. Any significant changes will be announced on the NC Network website.

Inquiries Regarding Personal Information

For other inquiries regarding personal information, please contact us by email or telephone at the contact information below.

Online Contact

+66-2-254-1801 (Support Hours: 9:00–18:00)

Please read and agree to the Terms of Use and Privacy Policy before submitting.
Precautions

Acts such as advertising or promotion using the inquiry form are prohibited by our terms of service. If discovered or reported, your use may be suspended. Please be aware of this in advance.

The questionnaire content and contact information will also be notified to selected exhibitors.

Company Information

MIKI PULLEY (THAI) CO., LTD.

MIKI PULLEY (THAI) CO., LTD.

View Details Contact
Main 3 Products

Coupling (shaft coupling) / Friction fasteners / Electromagnetic clutch/electromagnetic b

Phone Number

Display phone number

At MIKIPULLEY, we are dedicated to manufacturing - combining our passion for power transmission control equipment, the technology we have cultivated, and our proactive spirit to adapt to the times and ...

Related Catalogs

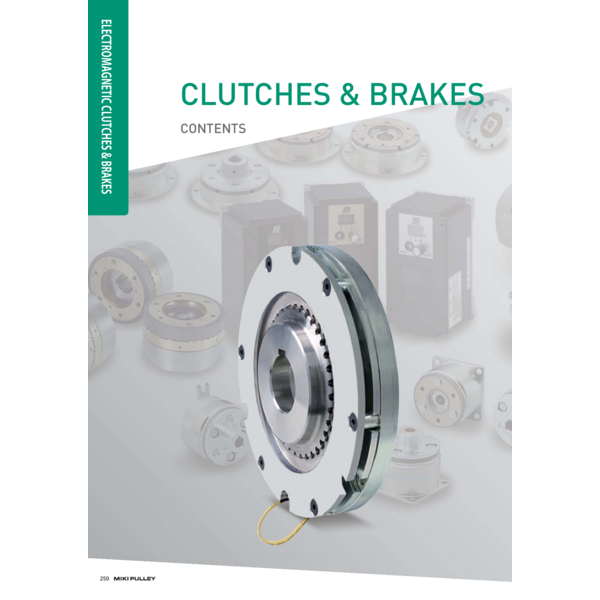

SPRING-ACTUATED
