CENTAFLEX

CENTAFLEX

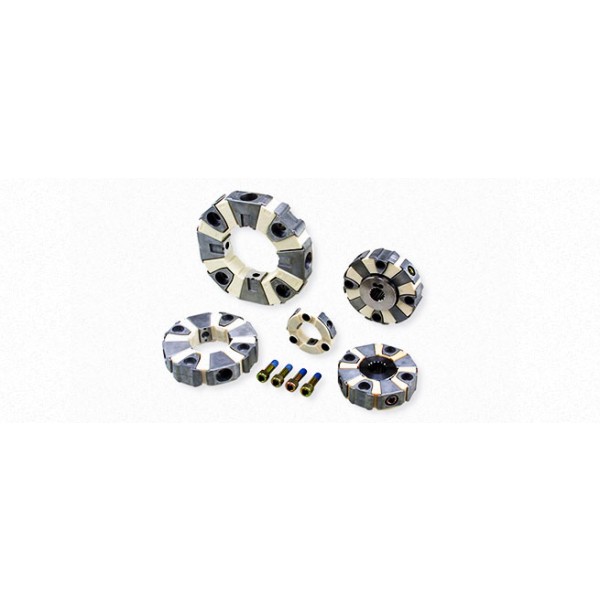

Centaflex (rubber/resin coupling for motors) CF-H (Miki Pulley Thailand)

The Centaflex Coupling CF-H is a high durability coupling that uses polyester resin with rubber elasticity to provide excellent vibration and shock absorption. It offers heat resistance, cold resistance, and oil resistance that cannot be achieved with natural rubber, ensuring reliable power transmission even in harsh environments. Additionally, it allows for easy connection and disconnection of input and output with axial movement, making maintenance simple. It supports a wide range of applications, including construction machinery, agricultural machinery, marine equipment, generators, special vehicles, machine tools, testing equipment, and wind power generators.
Features
High-Quality Polyester Resin: Possesses rubber elasticity, providing heat resistance, cold resistance, and oil resistance.
Excellent Vibration and Shock Absorption: Effectively absorbs vibrations and shocks during power transmission.
Easy Maintenance: Allows easy connection and disconnection of input and output with axial movement.
Backlash-Free: Ensures high-precision power transmission.
High Durability Design: Boasts long life even in harsh environments.
Specifications
Model: CF-H
Torque Range: 20 to 2500 N·m
Operating Temperature Range: -40°C to +120°C
Element Used: Polyester resin
Mounting Method: Bolt fixing
Maximum Rotation Speed: 5000 min⁻¹
Shaft Misalignment Absorption Range: Parallel misalignment: ±0.5 mm, Angular misalignment: ±1.0°
Applications
Construction Machinery: Machines requiring high durability
Agricultural Machinery: Machines requiring vibration absorption
Marine Equipment: Devices that withstand harsh environments
Generators: Power generation devices requiring stable power transmission
Special Vehicles: Vehicles requiring high durability and reliability
Machine Tools: Machines requiring high-precision power transmission
Testing Equipment: Testing devices requiring accurate power transmission and vibration absorption
Wind Power Generators: Power generation devices requiring high durability and reliability
The Centaflex Coupling CF-H uses high-quality polyester resin to provide excellent vibration and shock absorption, making it a high durability coupling suitable for various applications. Ideal for a wide range of machinery and equipment.

Category

Machine & Mechanical Parts > Power Transmission Components > Coupling
