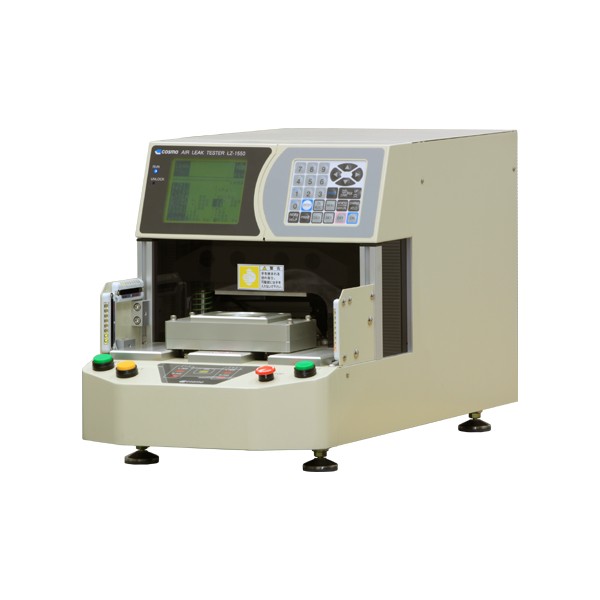

PT-161A / PT-162A Air Leak Tester Designed for Small Sealed Products

The LZ-1550 is a high-precision air leak tester specifically designed for small sealed products. With a differential pressure resolution of 0.1 Pa, it is ideal for testing products requiring airtightness, such as relays, crystal oscillators, and waterproof mobile phones. Its flexible configuration supports up to 16 channels, making it suitable for multi-product, small-lot production. Additionally, features such as auto-drift correction and self-check functions ensure stable performance and low running costs.
■ Features
High-Precision Measurement
Differential pressure resolution: 0.1 Pa
Equipped with a high-performance AD converter for accurate detection of even the smallest leaks.
Multi-Product Compatibility
Supports independent settings for up to 16 channels.
Allows for quick and easy product switching.
Versatility
Auto-drift correction compensates for environmental fluctuations, ensuring stable measurements.
Self-check function quickly detects equipment abnormalities.
Waveform monitoring allows real-time analysis of measurement data.
Ease of Use
Full-dot LCD display and indicator lamps provide intuitive operation.
Easy PC integration via serial communication (RS-232C, USB).
Low Running Costs
Uses clean air, eliminating the need for additional processes like drying.
■ Specifications
Measurement Method: Differential pressure method
Pressure Range: 10–500 kPa (varies by model)
Resolution: 0.1 Pa
Maximum Number of Channels: 16 channels
Output: RS-232C, USB
Display: Full-dot LCD display
Power Supply: AC 100–240V, 50/60Hz
Size & Weight: W350 × H150 × D400 mm, approx. 8 kg
Operating Environment: Temperature 5–45°C, humidity 80% or less (non-condensing)
■ Applications
Electronic Components: Leak testing for relays and crystal oscillators
Waterproof Devices: Airtightness testing for waterproof mobile phones and wearable devices
Medical Equipment: Quality control for capsules, syringes, etc.
Precision Instruments: Leak testing for precision equipment and small sealed products
The LZ-1550 combines high precision and multifunctionality, making it the ideal air leak tester for small sealed products.
■ For more details, please download the PDF or contact us.

Category

Testing & Analysis Equipment > Leak Detection Equipment > Pressure Decay Leak Testing Equipment

CONTACT

Contact Form

Name*
Company Name*
Country*
Department
Position
Email Address*
Phone Number
Business Category
motive ※
the purpose ※
Information you want to know ※
Time of introduction ※
Other company's products
Inquiry Content ※
File Attachment
Image files (JPEG, PNG, GIF), PDF files, Compressed files (ZIP, LZH) (Maximum 10MB)
Consent Regarding the Handling of Personal Information ※

NC Network Co., Ltd. complies with laws, regulations, and other standards related to the handling of personal information, and takes the utmost care to properly manage and protect personal information so that users can use our services comfortably and with peace of mind.

We also conduct periodic audits and inspections of our compliance program and personal information protection system and make continuous improvements. We take reasonable preventive and corrective measures against internal and external risks such as unauthorized access, loss, destruction, falsification, and leakage of all personal information. The following outlines how NC Network handles personal information.

Purpose of Use

The personal information you provide will be used by NC Network for the following purposes and will not be used for any other purpose.

  • To ensure smooth commercial transactions conducted through NC Network
  • For distributing email newsletters
  • For surveys regarding usage status and environment, and for preparing statistical materials aimed at improving NC Network services
  • For identity verification during user support

Disclosure of Personal Information to Third Parties

As a general rule, NC Network will not disclose the personal information you provide to third parties. However, exceptions apply in the following cases.

  • When the user has given prior consent for the disclosure of personal information
  • When NC Network determines that it is necessary to protect its rights, property, or services due to actions by the user that violate the Terms of Use or other regulations
  • When there is an imminent danger to someone's life, body, or property and urgent action is required
  • When formal inquiries are received from courts, police, or other public institutions based on applicable laws
  • When disclosure or provision is required under applicable laws and regulations

Disclosure, Correction, and Deletion of Personal Information

In principle, NC Network allows users to view their registered information at any time. These reference screens serve as the procedures for the disclosure, correction, and deletion of personal information. Users may also apply for withdrawal at any time to delete their registered personal information.

Privacy Policy Revisions

To continue protecting users’ personal information, NC Network may revise all or part of this privacy policy without prior notice to users. Any significant changes will be announced on the NC Network website.

Inquiries Regarding Personal Information

For other inquiries regarding personal information, please contact us by email or telephone at the contact information below.

Online Contact

+66-2-254-1801 (Support Hours: 9:00–18:00)

Please read and agree to the Terms of Use and Privacy Policy before submitting.
Precautions

Acts such as advertising or promotion using the inquiry form are prohibited by our terms of service. If discovered or reported, your use may be suspended. Please be aware of this in advance.

The questionnaire content and contact information will also be notified to selected exhibitors.

Company Information

COSMOWAVE TECHNOLOGY CO., LTD.

COSMOWAVE TECHNOLOGY CO., LTD.

View Details Contact
Industry Classification

/ Measuring machinery

Main 3 Products

Air leak tester / Electric servo press / Waveform analysis (abnormal no

Phone Number

Display phone number

Homepage URL

Display URL

It employs a large number of service engineers, and for all of the standard products it can provide services at the same level as in Japan, from supervising through to inspection,calibration, and repa ...

Related Catalogs

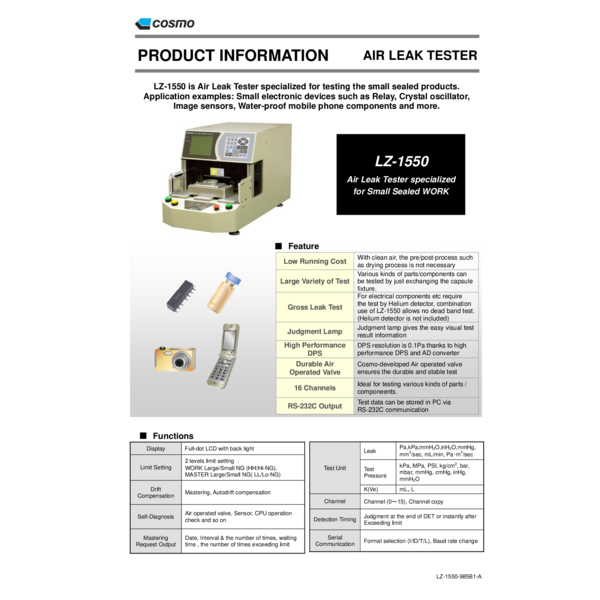

LZ-1550
