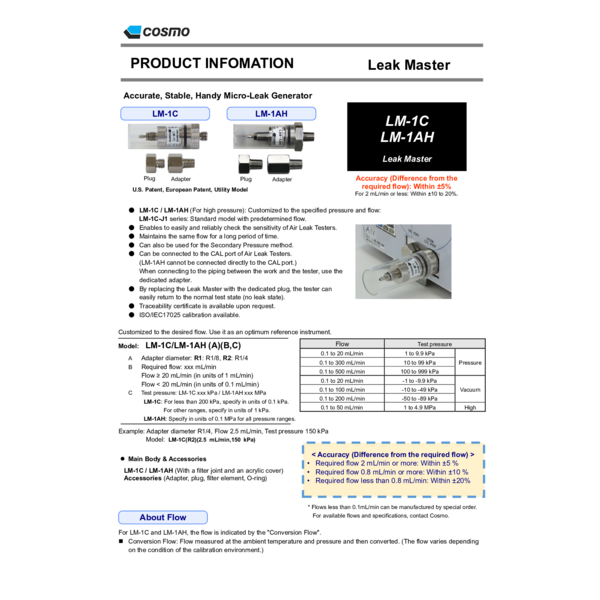

LM-1C / LM-1AH Leak Master Air Leak Tester Ideal for Daily Inspections
The LM-1C is designed and manufactured according to the specified test pressure and leak rate, accommodating a range of -89 kPa to 999 kPa. On the other hand, the LM-1AH is a high-pressure model capable of handling test pressures from 1 MPa up to a maximum of 4.9 MPa. These Leak Masters are precise, stable, and compact, making it easy to verify the sensitivity of air leak testers and measure equivalent internal volume.
■ Features
Capable of reproducing specified leak rates at specified test pressures
Manufactured with an accuracy within ±5% for leak rates of 2 mL/min or higher
Enables easy and reliable sensitivity checks for air leak testers
Maintains stable leak rates over long periods
Compatible with external pressure detection systems (secondary-side measurement)
Can be directly connected to calibration ports
Connectable to intermediate piping using a dedicated adapter
Traceability certificates available
■ Specifications
Test Pressure Range: -89 kPa to 999 kPa (For pressures above 1 MPa, custom orders are handled by LM-1AH)
Leak Rate Range: 0.1 mL/min to 200 mL/min
Manufacturing Accuracy:
For leak rates ≥ 2 mL/min: Within ±5%
For leak rates ≥ 0.8 mL/min: Within ±10%
For leak rates < 0.8 mL/min: Within ±20%
External Dimensions: Φ25 × 78 mm (with filter joint and clear cover)
The LM-1C and LM-1AH are high-quality Leak Masters that contribute to maintaining the performance and reliability of air leak testers.
■ For more details, please download the PDF or contact us.
