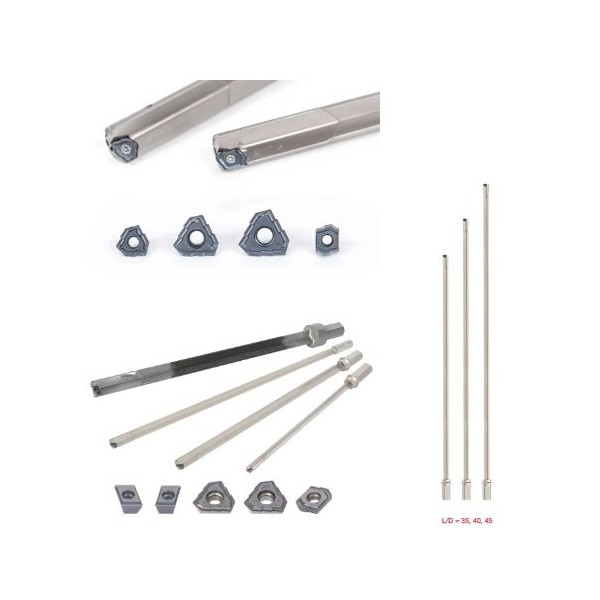

Indexable insert drill DeepTri-Drill designed for optimal circularity and straightness.
The DeepTri-Drill combines excellent chip evacuation and an H-grade 3-corner insert design to achieve high precision and efficiency in deep hole drilling.
DeepTri-Drill is an indexable insert drill optimized for deep hole drilling, excelling in circularity, straightness, and surface roughness. It uses an H-grade 3-corner insert for ease of tool management and high cost-effectiveness. Additionally, the use of guide pads enhances stable cutting performance, allowing for high-efficiency machining. Its versatility is also evident in its compatibility with lathes, machining centers, and gun drill machines.
■ Features
- Superior circularity, straightness, and surface roughness
- The high-precision design delivers excellent finishes even in deep hole drilling.
- Good chip evacuation performance
- Stable chip discharge facilitates high-efficiency machining.
- H-grade 3-corner specification insert
- 3-corner insert improves cost performance.
- H-grade precision supports high-precision machining.
- Use of guide pads
- Enhances tool stability during cutting and suppresses vibration.
- Wide range of compatible machines
- Can be used on lathes, machining centers, and gun drill machines.
■ Specifications
- Product number: No. 430-J (general)
- Sub-models: No. 430S1-J (L/D ratios 35, 40, 45), No. 430S2-J (AH9130), No. 430S3-J (ø10)
- Guide pads: No. 538-J (general)
- Insert specifications: H-grade 3-corner design
■ Machining applications
- High-precision deep hole drilling
- Internal machining of automotive and aerospace parts
- Pipe machining for energy-related equipment
- High-efficiency required mass production lines
DeepTri-Drill is an indexable insert drill designed for high precision and stability in deep hole drilling. It also offers ease of tool management and cost-effectiveness, contributing to productivity improvement.
■ For more details, please download the PDF or feel free to contact us.
