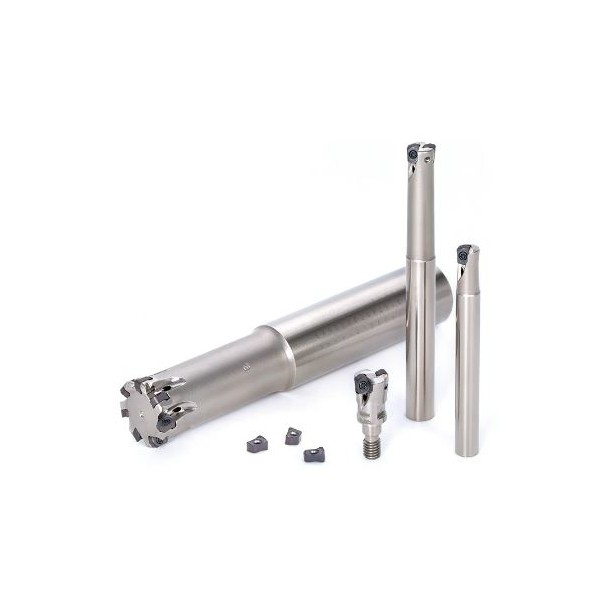

High-feed cutter AddDoFeed for high efficiency in small-diameter machining
The high-feed cutter AddDoFeed achieves ultra-high-speed machining with a small insert and multi-blade design, balancing tool rigidity and cost-effectiveness.
AddDoFeed is a high-feed cutter specialized for small-diameter machining, allowing significant cost reduction when switching from solid end mills. It utilizes an 02 size optimal for machining diameters ø8—25mm, featuring a multi-blade design and high tool rigidity to maximize machining efficiency. It performs well in various machining applications including shoulder milling, slotting, and drilling.
■ Features
- Multi-blade design with small inserts
- Achieves ultra-high-speed machining and improves machining efficiency
- Balances multi-blade configuration and high rigidity with the miniaturization of inserts
- Ideal for machining diameters ø8—25mm
- Cost-effective with a 4-corner double-sided specification
- Uses innovative 4-corner double-sided inserts to reduce tool costs
- High tool rigidity
- Enhanced rigidity with negative inserts and fine-pitch threads
- Improved fracture resistance with thicker inserts
- Enhanced reliability in insert clamping with the use of fine-pitch threads
- Good chip evacuation
- Generates fine chips with the inclination (angle) of the cutting edge
- Prevents chip clogging and extends tool life
■ Specifications
- Tool diameter: ø8—25mm
- Inserts: 4-corner double-sided, small design
- Compatible processes: High-feed machining, shoulder milling, slotting, angled feed, side and face milling, helical drilling, hole enlarging
■ Applications
- Improving efficiency in shoulder milling and slotting
- Stable machining in drilling and hole enlarging
- High-precision mold machining and automotive parts machining
- Small diameter pocket machining where chip processing is critical
AddDoFeed enhances machining efficiency and reliability, contributing to productivity improvements in small-diameter machining. It is an ideal solution for cost reduction and extending tool life.
■ For more details, please download the PDF or feel free to contact us.
