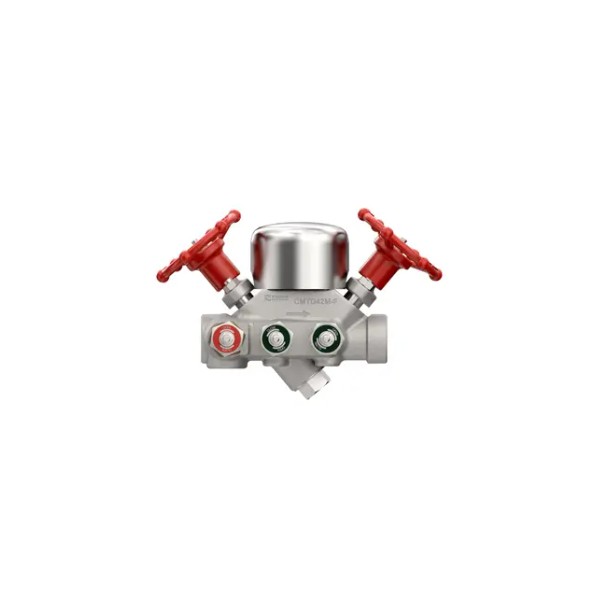

Compact Thermodynamic Steam Trap “CMTD™” – Modular Design for Fast Installation and Low Maintenance

CMTD™ offers compact, modular design for space-saving installation, reduced maintenance time, and zero leakage with piston valve technology.
The CMTD™ by Forbes Marshall is a compact module combining a thermodynamic steam trap with a universal connector and pipeline connector. With only two welding points, the system installs in just 45 minutes, reducing labor time and simplifying plant installation.
■ Features
- Modular system with only two welds
- Quick installation – approximately 45 minutes
- Forged carbon steel body for high durability
- One-piece in-line construction
- Zero leakage piston valve design
■ Specifications
- Overall length: 160 mm
- Weight: 4 kg
- Max operating pressure: up to 42 bar g
- Max temperature: up to 425°C
- Bypass and vent valve included (model-dependent)
■ Applications
- Mainline steam drainage
- Pasteurizers and heat exchangers
- Systems requiring frequent maintenance access
■ Industries Served
- Food and Beverage
- Pharmaceutical and Chemical
- Pulp & Paper, Textile, Sugar
- Energy plants and boiler systems
CMTD™ simplifies steam system design, minimizes heat loss, and allows inline maintenance without plant shutdown.
■ For more details, please download the PDF or contact us directly.
