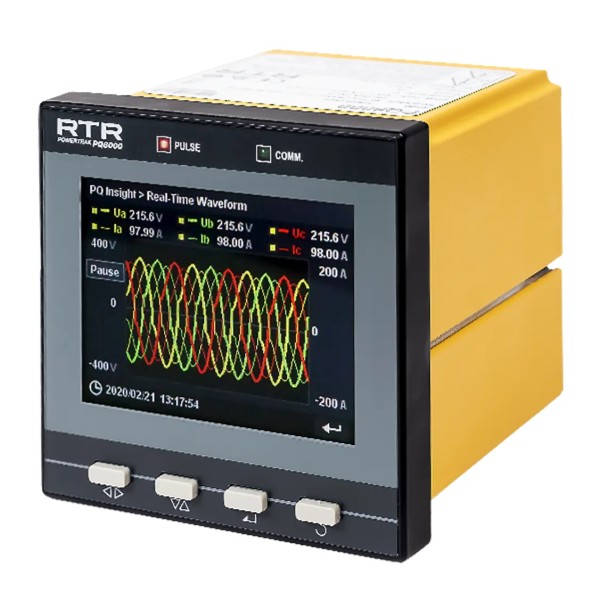

Advanced Power Quality Monitoring System - Accurate Measurement and Analysis with RTR PQ8000

The RTR PQ8000 is the latest measuring instrument that supports advanced power quality monitoring for utilities, data centers, high-tech manufacturing, and heavy industry. It fits into a compact 96x96x119.5mm DIN standard size, making it ideal for space-constrained environments. The PQ8000 features reliable measurement accuracy compliant with IEC standards and a data recording function with a large 1GB memory. Furthermore, remote monitoring via a web server is possible, and integration into various systems is easy using Ethernet and RS-485 communication ports.
■ Features
High-Precision Measurement
Compliant with IEC 6100-4-30 and IEC 62053 standards, it provides Class S power quality measurement and Class 0.2s accurate metering functionality.
Diverse Communication Options
With a 100BaseT Ethernet port and an RS-485 port (supporting Modbus TCP/RTU), remote data management and monitoring are possible.
Large Capacity Memory
With 1GB of built-in memory, detailed data recording such as waveform recording, energy usage logs, and demand logs is possible.
Multifunctional Measurement
Measures power parameters such as 3-phase voltage/current, power, frequency, phase angle, and THD in real-time. Neutral current and leakage current can also be monitored.
Easy Installation and Operation
Password-protected settings and easy operation from the front panel and web server are possible. With a slide-in installation method, installation is possible without tools.
■ Specifications
Size: 96mm x 96mm x 119.5mm
Display: IPS color dot matrix display (320x240)
Communication: 100BaseT Ethernet, RS-485 (Modbus TCP/RTU compatible)
Recording Memory: 1GB
Standards: IEC 6100-4-30, IEC 62053-22, IEC 62053-24
Measurement Parameters: 3-phase voltage, current, power, frequency, THD, phase angle, neutral current, leakage current
Supported Applications: Power quality monitoring for main receiving equipment and critical feeders, substation and building/factory automation, utility and industrial meters
Logging Functions: 256-entry waveform recording, SOE log of up to 512 events
The PQ8000 is an essential tool for ensuring the safety and efficiency of power infrastructure. With high-precision measurement and comprehensive data recording functions, power quality issues can be accurately identified and addressed immediately.
For details, please download the PDF or feel free to contact us.
