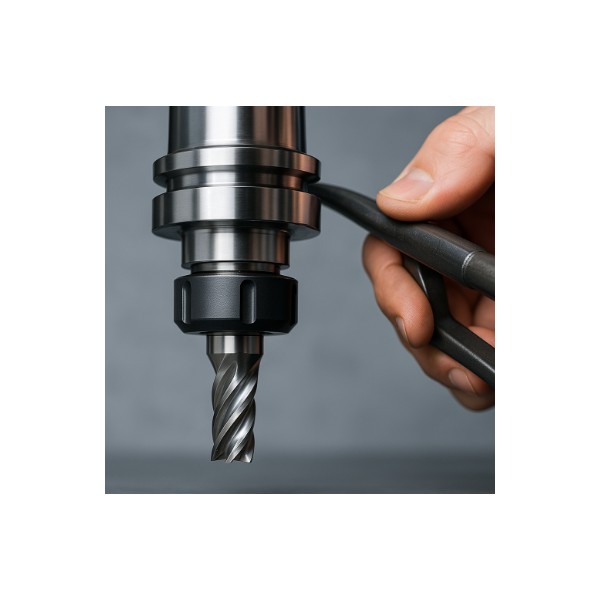

How to Use a Collet Chuck Correctly｜Reduce Runout and Extend Tool Life

Using a Collet Chuck properly reduces runout, prevents tool slippage, and extends tool life. This guide explains correct handling, maintenance tips, and recommends a high-precision model from HANEDA.
■ What is a Collet Chuck?
A Collet Chuck is a high-precision tool holder designed to grip cutting tools or workpieces. Commonly used in turning, milling, and drilling, it enhances accuracy and reduces vibration. The collet sleeve wraps tightly around the tool shank to ensure firm clamping.
■ Precautions When Using a Collet Chuck
To maximize performance and tool life:
・ Insert the tool so that over 80% of its length is gripped by the collet.
・ Always tighten using a torque wrench for consistent force.
・ Use collets and nuts from the same brand to ensure compatibility.
・ Verify the maximum RPM rating of each collet model before use.
■ Common Issues and Root Causes
・ High Runout: Caused by metal debris, dust, or insufficient tightening.
・ Tool Slippage: Often from worn collets or improper tightening force.
・ Collet Cracks: May result from excessive speed or incorrect setup.
■ Maintenance Tips to Extend Service Life
・ Clean the collet and nut after each use to remove chips and oil.
・ Store in a dry place to prevent rust.
・ Periodically inspect for wear and replace as needed.
・ Use a torque wrench to maintain optimal clamping force.
■ Recommended Product: HANEDA Collet Chuck｜±0.005 mm Runout Accuracy
For industries requiring high-precision machining, HANEDA (Thailand) Co., Ltd. offers Collet Chucks that maintain ±0.005 mm runout, ensuring excellent surface finish and tool life.
■ Key Features:
・ Runout within ±0.005 mm for enhanced cutting stability
・ Made from hardened steel (HRC60–62) with fine-ground surface
・ Designed for high-speed operation without vibration
・ Compatible with BT, HSK, ER, NT, and more
・ Custom options available based on machine specs
■　For more details, refer to the PDF or contact HANEDA (Thailand) directly.
