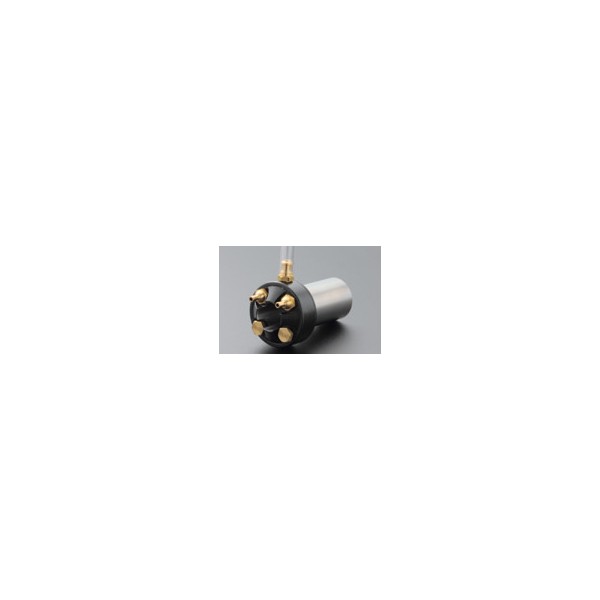

SD Collet Holder External Coolant Type Thailand Prachinburi

The External Lubrication Type SD Collet Holder is a high-performance tooling solution that achieves stable cutting processes and extended tool life through external lubrication supply. It supports various sizes from φ8 to φ13.
The External Lubrication Type SD Collet Holder utilizes an external lubrication system to provide a stable supply of lubricant to cutting tools. This suppresses wear during machining and supports extended tool life. With a compact design featuring a 65mm overall length, it is adaptable to a wide range of machining environments. It delivers stable performance in precision machining sites such as automotive and aerospace.
Features
・External lubrication function allows easy lubricant supply and extends tool life
・High clamping force supports precision machining
・Compact design makes it easy to handle even in confined spaces
・Diverse inner diameter options from φ8 to φ13 support a wide range of machining applications
・65mm overall length allows for easy installation
Specifications
Part Number: SDC-S-8, SDC-S-10, SDC-S-12, SDC-S-16
Outer Diameter: φ25
Overall Length: 65mm
Inner Diameter: φ8 (SDC-S-8), φ10 (SDC-S-10), φ12 (SDC-S-12), φ13 (SDC-S-16)
Applications
・Industries requiring precision metal machining (e.g., automotive, aerospace)
・Long-duration continuous machining requiring high cutting precision and lubrication
・Sites where tool wear needs to be prevented through external lubrication
The External Lubrication Type SD Collet Holder is designed to maximize tool durability and efficiency in precision machining.
