WMS METAL SAW CO., LTD.

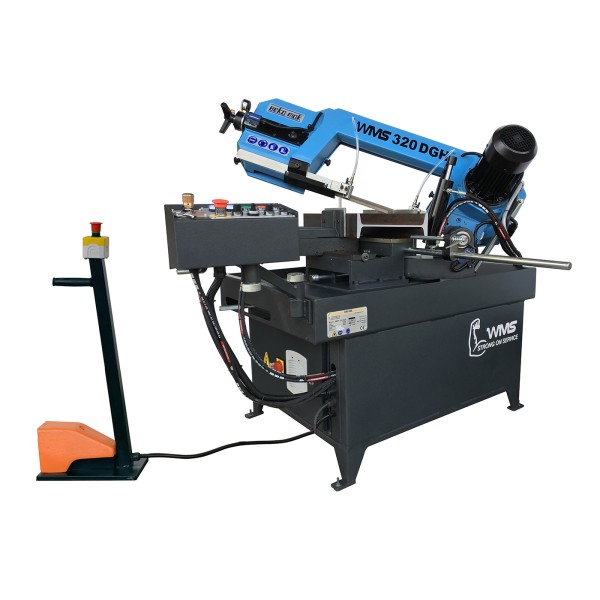

WMS-320 DGH Semi-Automatic Double-Miter Bandsaw

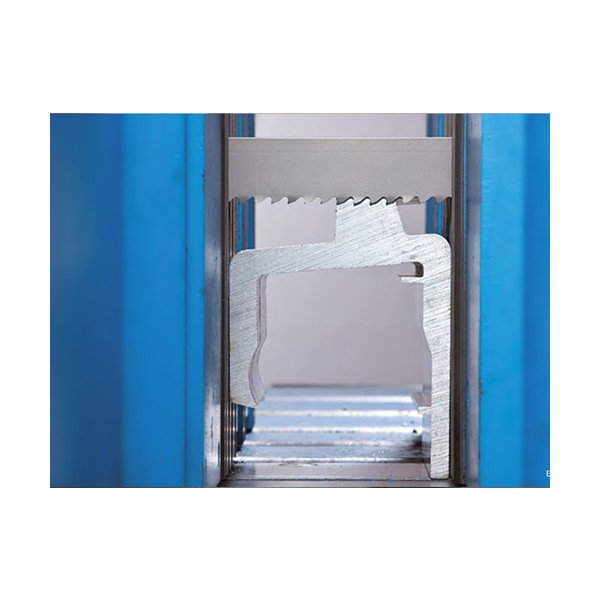

The WMS-320 DGH is a semi-automatic bandsaw designed for cutting steel and non-ferrous metals, both profiles and solid materials. Featuring a robust monoblock construction, it supports angle cuts from -45° to +60°. Equipped with a digital display control panel, it enables precise and efficient cutting operations.
■ Features
Angle Cutting Capability: Adjustable cutting angles from -45° to +60°
Durable Construction: Robust design for heavy-duty use
Hydraulic Clamping System: Securely holds materials for accurate cutting
Digital Control Panel: Simplifies angle and cutting settings
Automatic Frame Lift: Improves workflow efficiency
Adjustable Belt Speed: Speed range of 35–70 m/min
Safety Features: Automatic stop after cutting and belt damage protection system
■ Specifications
Cutting Capacity:
Round: Up to 230 mm
Flat: Up to 320 x 130 mm
Main Motor: 1.0–1.5 kW
Belt Speed: 35–70 m/min
Belt Dimensions: 2730 x 27 x 0.9 mm
Weight: 465 kg
The WMS-320 DGH is a reliable tool for precision cutting, enhancing productivity and operational efficiency.
