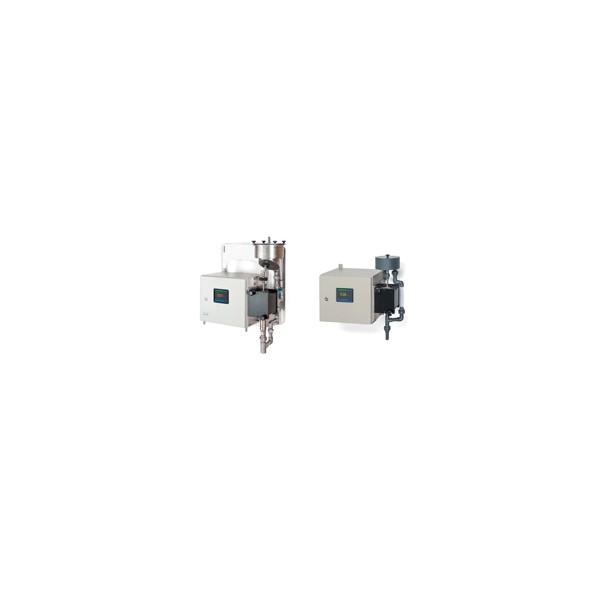

Petrochemical & Refinery Industry: Online Oil Monitoring with OilGuard (Thailand)

■ Overview (Thailand)In the petrochemical and refinery industry, detecting and managing trace amounts of oil in wastewater or process water is crucial. The OilGuard On-line Oil in Water Analyzer by SIGRIST-Photometer uses a non-contact UV fluorescence measurement principle to provide accurate real-time oil monitoring. This device is used for a wide range of applications, such as oil monitoring in boiler water, heat exchangers, wastewater, and rainwater. It requires minimal maintenance and offers long-term reliability.
■ Features (Thailand)
Accurate Oil Measurement: UV fluorescence technology detects oil concentrations from 0 to 1000 ppm.
Non-contact Measurement: The Free-fall design prevents dirt accumulation, ensuring system stability.
High-precision Dual-beam Optical Design: Maximizes accuracy and stability while minimizing the effects of solids and light source aging.
Easy Recalibration: Quick recalibration without chemicals or special tools.
Flexible System Integration: Supports Ethernet and Modbus TCP for easy system integration.
■ Specifications (Thailand)
Measurement Principle: UV fluorescence
Measurement Range: 0–100 FLU / 0–1000 ppm (depending on oil type)
Response Time: Less than 2 seconds
Operating Temperature: -20 to +50°C
Installation: Side-stream system
Sample Flow Rate: 5–7 l/min
Power Supply: 230V 50/60 Hz
Protection Class: IP65
■ Applications (Thailand)
Oil Monitoring in Boiler and Condensate Water: Ideal for clean water management in refinery and petrochemical processes.
Oil Monitoring in Heat Exchangers: Critical for maintaining equipment efficiency in plants.
Oil Monitoring in Wastewater and Rainwater: Effective for wastewater management and environmental responsibility.
OilGuard provides accurate and reliable oil monitoring, supporting process optimization and environmental protection in petrochemical and refinery industries.
Please download the PDF or feel free to contact us for further information.

Category

Environmental Services > Environmental Measurement and Analysis > Water Quality Measurement

CONTACT

Contact Form

Name*
Company Name*
Country*
Department
Position
Email Address*
Phone Number
Business Category
motive ※
the purpose ※
Information you want to know ※
Time of introduction ※
Other company's products
Inquiry Content ※
File Attachment
Image files (JPEG, PNG, GIF), PDF files, Compressed files (ZIP, LZH) (Maximum 10MB)
Consent Regarding the Handling of Personal Information ※

NC Network Co., Ltd. complies with laws, regulations, and other standards related to the handling of personal information, and takes the utmost care to properly manage and protect personal information so that users can use our services comfortably and with peace of mind.

We also conduct periodic audits and inspections of our compliance program and personal information protection system and make continuous improvements. We take reasonable preventive and corrective measures against internal and external risks such as unauthorized access, loss, destruction, falsification, and leakage of all personal information. The following outlines how NC Network handles personal information.

Purpose of Use

The personal information you provide will be used by NC Network for the following purposes and will not be used for any other purpose.

  • To ensure smooth commercial transactions conducted through NC Network
  • For distributing email newsletters
  • For surveys regarding usage status and environment, and for preparing statistical materials aimed at improving NC Network services
  • For identity verification during user support

Disclosure of Personal Information to Third Parties

As a general rule, NC Network will not disclose the personal information you provide to third parties. However, exceptions apply in the following cases.

  • When the user has given prior consent for the disclosure of personal information
  • When NC Network determines that it is necessary to protect its rights, property, or services due to actions by the user that violate the Terms of Use or other regulations
  • When there is an imminent danger to someone's life, body, or property and urgent action is required
  • When formal inquiries are received from courts, police, or other public institutions based on applicable laws
  • When disclosure or provision is required under applicable laws and regulations

Disclosure, Correction, and Deletion of Personal Information

In principle, NC Network allows users to view their registered information at any time. These reference screens serve as the procedures for the disclosure, correction, and deletion of personal information. Users may also apply for withdrawal at any time to delete their registered personal information.

Privacy Policy Revisions

To continue protecting users’ personal information, NC Network may revise all or part of this privacy policy without prior notice to users. Any significant changes will be announced on the NC Network website.

Inquiries Regarding Personal Information

For other inquiries regarding personal information, please contact us by email or telephone at the contact information below.

Online Contact

+66-2-254-1801 (Support Hours: 9:00–18:00)

Please read and agree to the Terms of Use and Privacy Policy before submitting.
Precautions

Acts such as advertising or promotion using the inquiry form are prohibited by our terms of service. If discovered or reported, your use may be suspended. Please be aware of this in advance.

The questionnaire content and contact information will also be notified to selected exhibitors.

Company Information

WATER TEST CO., LTD.

WATER TEST CO., LTD.

View Details Contact
Main 3 Products

Analyzer Installation & Maintenance / Water Quality Consultation / Lab Services

Phone Number

Display phone number

Homepage URL

Display URL

Since 1991, Water Test Co., Ltd. has specialized in water quality analysis, focusing on inline and online analyzers. We provide installation, maintenance, and lab support, serving industries like food ...

Related Catalogs

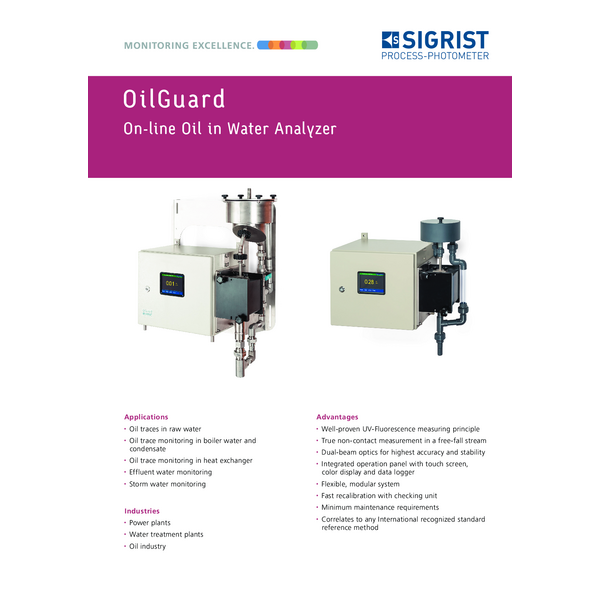

OilGuard
