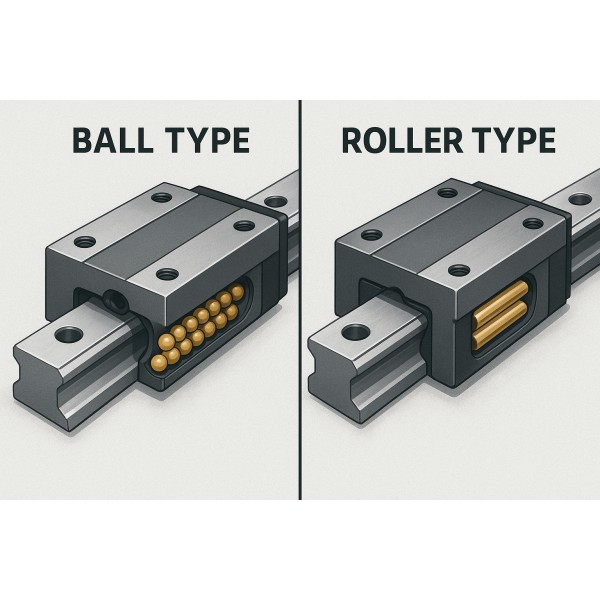

Differences Between Ball Type and Roller Type Linear Guides

🌟 Key Takeaways• Ball and Roller Types differ in contact structure, affecting load capacity, rigidity, and speed performance.
• Ball Type delivers smooth, high-speed motion, while Roller Type supports higher loads and moment resistance.
• Incorrect selection can lead to wear, shortened lifespan, and heat generation.
• Proper selection must consider total load, speed, and moment load.
• Information referenced from IKO Linear Motion Rolling Guide Catalog (RED/BLUE).
ーーーーーーーーーーーーーーーーーーーーーーー
Linear Guides are essential components in Automation, Robotics, Semiconductor systems, and industrial machinery. They support mechanical loads and ensure precise linear motion. Two internal rolling elements are commonly used—Ball Type and Roller Type—each offering different mechanical characteristics. IKO catalogues classify them based on structure and rigidity levels for various industrial requirements.
🔶 Ball Type Linear Guide — Point Contact
Ball Type guides use steel balls, creating Point Contact, resulting in:
• Low friction
• Smooth running performance
• High-speed capability
• Suitable for medium loads and continuous fast motion
IKO series examples include LWL, LWH, ML, and MLF, covering both Miniature and Standard ranges.
Ideal applications
• Conveyor systems
• General automation
• Pick & Place units
• Compact devices
🔶 Roller Type Linear Guide — Line Contact
Roller Type guides use cylindrical rollers, forming Line Contact, providing:
• Significantly higher load capacity
• High rigidity
• Reduced deflection under moment load
• Stable accuracy under heavy loads
IKO Roller-Type groups include Linear Roller Way and Crossed Roller Way, capable of handling multi-directional loads.
Ideal applications
• CNC machinery
• Industrial robots
• Semiconductor stages
• Precision measuring equipment
🔶 Ball Type vs Roller Type (Compact Bullet Comparison)
● Ball Type
• Point Contact
• Medium load capacity
• Moderate rigidity
• High-speed motion
• Smoother running
• Lower cost
• Medium moment resistance
• Suitable for general automation
● Roller Type
• Line Contact
• Very high load capacity
• High rigidity
• Moderate speed capability
• Moderate smoothness
• Higher cost
• Excellent moment load resistance
• Suitable for precision and heavy-duty applications
🔶 How to Select the Right Type
Choose Ball Type when:
• High-speed motion is required
• Smooth travel is important
• Loads are moderate
• Budget constraints apply
Choose Roller Type when:
• High moment loads must be supported
• High rigidity is required (XY stage, robot systems)
• Workpieces are heavy or exposed to impact
• Accuracy must remain stable under load
🔶 Common Problems When Selecting the Wrong Type
• Ball Type in heavy-load applications → indentations, shorter lifespan
• Roller Type in high-speed applications → heat generation, higher energy use
• Moment load not considered → uneven wear, abnormal noise
📘 Summary
Ball Type offers speed and smooth motion, while Roller Type offers rigidity and heavy-load capability. Always evaluate total load, moment load, and required speed to achieve long service life and optimal performance.
