Needle Roller Bearings｜Structure, Function & Benefits Explained for Engineers

Needle roller bearings are compact, high-load cylindrical bearings ideal for machines with limited space. This guide explains their structure, function, and key considerations for industrial use.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
■ What Are Needle Roller Bearings?
Needle roller bearings (ตลับลูกปืนเข็ม) are a type of cylindrical roller bearing characterized by thin, long rollers. Unlike ball bearings, these rollers have a greater contact length with the raceway, enabling them to support high radial loads in a low-profile design. This makes them suitable for compact machines where space-saving is crucial.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

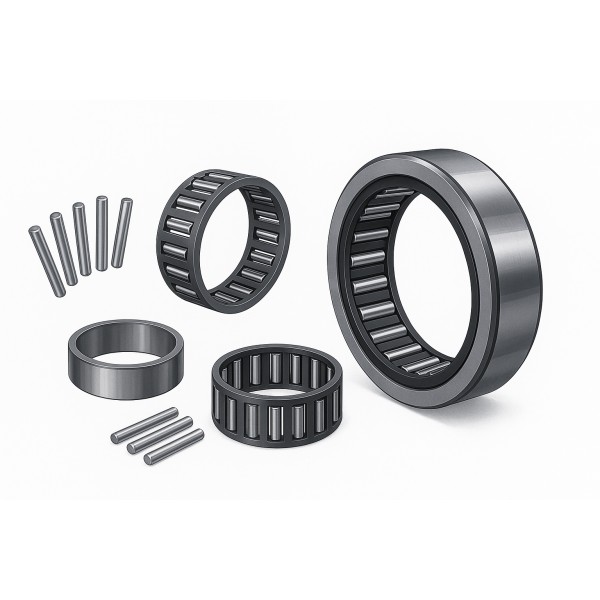

■ Key Components and Structure
A typical needle bearing includes:
- Needle Rollers: Long, cylindrical elements that bear radial loads.
- Cage (รังลูกปืน): Retains and guides the rollers in uniform spacing.
- Inner/Outer Rings (วงแหวนใน/นอก): May be included depending on application.
- Needle & Cage Assemblies: Used where even more space-saving is needed.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
■ How Needle Bearings Work
The rollers rotate along raceways formed by the inner/outer rings or shaft surfaces. Their long shape increases contact with the raceway, reducing friction while carrying heavier radial loads. These bearings are optimized for applications requiring compactness and high load capacity at low to moderate speeds.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
■ Benefits and Considerations
Advantages:
- High radial load capacity with small footprint
- Lightweight and efficient
- Suitable for multiple configurations (with/without rings)
Considerations:
- Shaft/housing surfaces must be hardened for ringless types
- Not ideal for axial (thrust) loads
- Requires high alignment accuracy during installation
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
■ Why Choose IKO THOMPSON ASIA CO., LTD.
IKO THOMPSON ASIA CO., LTD. is a global pioneer in needle roller bearing innovation. Their products are known for:
- Precision Engineering
- Durability under demanding conditions
- Compact designs ideal for robotics, automation, and industrial machinery
IKO needle bearings are trusted by OEMs and engineers across Thailand and worldwide. Explore their full range or consult their team for solutions tailored to your machinery needs.
