CHENG YANG TECHNOLOGY CO., LTD.

CNC 540 Sinker EDM｜The latest EDM technology for graphite machining (Thailand)

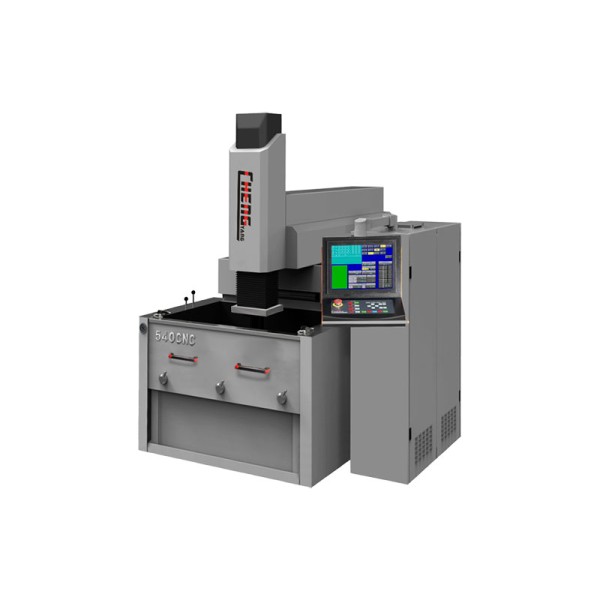

The CNC 540 Sinker EDM is an electrical discharge machine equipped with the latest technology, specifically designed for difficult-to-machine materials like graphite. It is designed for efficient machining of medium to large molds and features the Panasonic servo system for high-precision control and a CNC system for high levels of automation. It excels in durability, stability, and flexibility, adapting to a wide range of applications.
■ Features
High-precision machining for graphite: Provides stable machining performance even with difficult materials like graphite
CNC system: Delivers advanced automation and ease of use
Panasonic servo system: Ensures precise and stable operation
Supports various materials: Efficiently machines a wide range of materials, including metals and graphite
Space-saving design: Manual control doors optimize workspace
■ Specifications
X, Y, Z-axis travel distance: 500mm×400mm×300mm
Worktable size: 800mm×500mm
Maximum workpiece weight: 1800kg
Machine weight: 3000kg
Tank capacity: 400L
■ Applications
Ideal for medium to large mold machining in the automotive, aerospace, and precision machinery industries. It supports a wide range of materials, including graphite, and offers high performance in machining parts with special shapes.
The CNC 540 Sinker EDM is a high-precision electrical discharge machine ideal for machining difficult materials such as graphite.
For more details, download the PDF or feel free to contact us.
