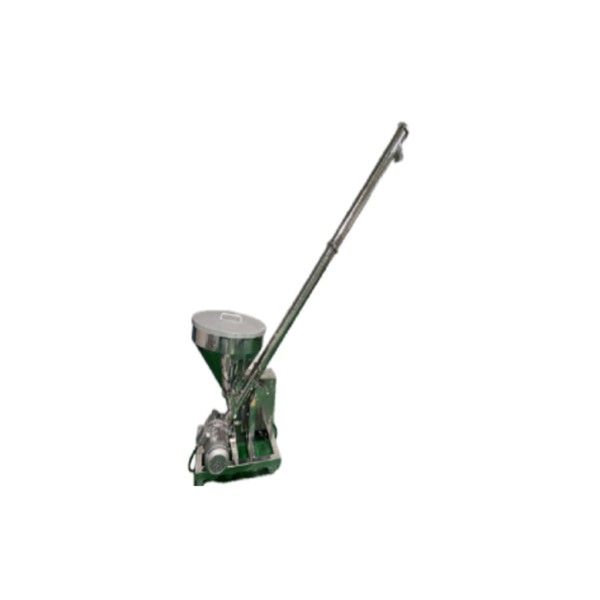

Screw Conveyor Model B-003-01

スクリューコンベアは、粉体や粒体の搬送に特化した機械装置で、食品、化学、建材などの多様な産業で使用されています。コンパクトで設置しやすく、設置スペースの制約がある現場にも対応できる設計が特徴です。材料を安全に搬送し、作業の効率化を促進するスクリューコンベアは、運搬のスムーズさと精度を求める環境に最適です。
■ Features
The main features of this screw conveyor are its stable conveying performance and extensive optional support.
Stable Conveyance: Achieves uniform and smooth conveyance regardless of material type.
Powder/Granular Material Compatibility: Compatible with various materials such as powders and granular materials, adaptable to materials with different flow properties.
Compact Design: Designed for efficient space utilization, simplifying installation and maintenance.
Customization Options: Optimal screw types can be selected according to conveying capacity and material characteristics.
Durability: Uses wear-resistant materials, suitable for long-term use.
■ Specifications
The main specifications of the screw conveyor are as follows:
Conveying Capacity: 5-50 tons/hour (adjustable depending on material and operating environment)
Screw Diameter: 50mm-500mm (selectable according to specifications)
Material: SUS304/SUS316 stainless steel (for food and chemical applications) or high-durability steel
Power: Electric motor driven, compatible with variable speed control
Installation Method: Horizontal and inclined installation possible (0-30 degrees)
■ Applications
Screw conveyors are utilized in the following industries and applications:
Food Industry: Conveyance of powdered seasonings, sugar, salt, grains, etc.
Chemical Industry: Conveyance of powdered chemicals and chemical raw materials
Construction Material Industry: Conveyance of cement, gravel, lime, etc.
Pharmaceutical and Cosmetics Industry: Conveyance of powdered materials in filling processes and before mixing
Screw conveyors are an ideal solution for all industries requiring uniform and highly efficient conveyance.
Belief Engineering Technology (Wuxi) Co., Ltd. is a Japanese-affiliated company established in China. In Thailand, we provide services in collaboration with local authorized distributors.
■ For details, please download the PDF or feel free to contact us.
