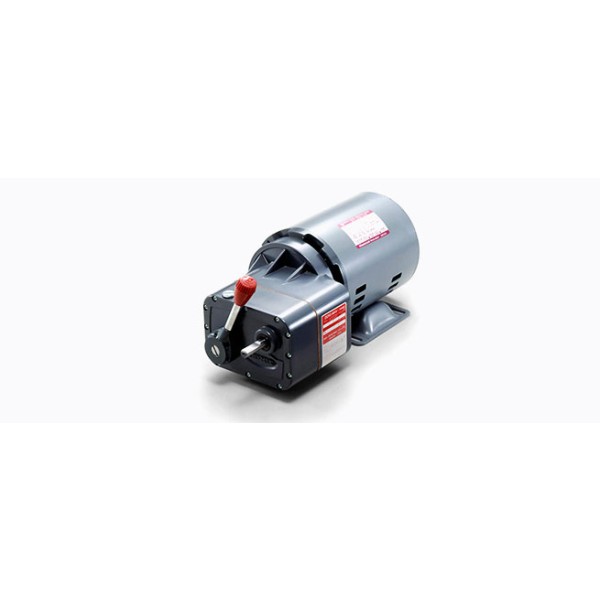

Zeromax Continuously Variable Transmission MS Series | Motor-integrated High-Performance Continuously Variable Transmission (Thailand Miki Pulley)

Zeromax Continuously Variable Transmission MS Series is a model that integrates a continuously variable transmission and a motor, eliminating the need for design work and motor connection. Motor output can be selected from two types: 0.2kW and 0.4kW (4-pole), and there are three sizes based on output shaft permissible torque, and two types depending on the output shaft rotation direction. This product offers high reliability despite being compact and lightweight, and can instantly change speed from zero rotation to maximum rotation. It is ideal for a wide range of applications, including NC lathes, machining centers, and semiconductor manufacturing equipment.
■ Features
- Integrated Motor Design: Integrates a motor with the continuously variable transmission, eliminating the need for design work and motor connection.
- Instant Speed Change: Capable of instant speed changes from zero rotation to maximum rotation, allowing for quick operational adjustments.
- High Reliability: Achieves high reliability and durability through a one-way clutch and link mechanism.
- Versatile Application: Supports three output shaft permissible torque sizes and two output shaft rotation directions, accommodating various applications.
- Easy Maintenance: Routine maintenance is simple, ensuring a long service life.
■ Specifications
Motor Output: 0.2kW, 0.4kW (4-pole)
Output Shaft Permissible Torque: 1.38 Nm to 6.90 Nm
Output Shaft Rotational Speed:
0 to 300, 330 min⁻¹ (50 Hz)
0 to 360, 400 min⁻¹ (60 Hz)
Power Supply Voltage: Three-phase 200V/50Hz, 200V/220V/60Hz
Speed Ratio: 1:12
Operating Temperature Range: -10℃ to 50℃
Protection Class: IP20 (Dustproof)
Material: High-durability aluminum and steel
■ Applications
- NC Lathes: Ideal for use in NC lathes where high-precision speed control is required.
- Machining Centers: Supports high-precision control in machining centers performing complex processing.
- Semiconductor Manufacturing Equipment: Ideal for use in semiconductor manufacturing equipment requiring advanced precision control.
- Chip Mounters: Ideal for use in chip mounters requiring precise component placement.
- Actuators: Supports use in actuators where precise movement is demanded.
- SCARA Robots: Ideal for use in SCARA robots requiring high-speed and high-precision operation.
The Zeromax Continuously Variable Transmission MS Series achieves high functionality with its integrated motor design, making it an ideal solution for a wide range of applications. It supports efficient operation and high performance.
