MIKI PULLEY (THAI) CO., LTD.

High-performance variable speed pulley compatible with standard V-belts | PF Model (Thailand Miki Pulley)

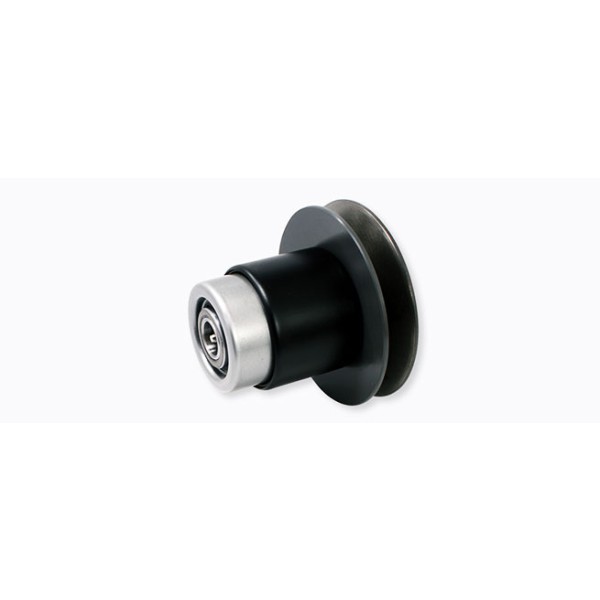

The PF model single-type variable pitch pulley is a Vari-Dia pulley that uses a wide variable speed belt and is attached to a motor for use. This pulley adopts a double-sheave design for wide variable speed belts, extending the belt's lifespan by consistently maintaining the belt's running line. The speed ratio is up to 1:2.4, ensuring a large transmission capacity. Compatible motors range from 0.4kW to 3.7kW (4-pole), and four sizes are available in the lineup.
■ Features
- Adoption of wide variable speed belts: By adopting wide variable speed belts, a large speed ratio can be achieved, allowing for a wide range of speed adjustment.
- Extended belt lifespan: The double-sheave design maintains a constant belt running line, extending the belt's lifespan.
- Large transmission capacity: Due to its high transmission capacity, it is also suitable for heavy-load industrial machinery.
- Easy installation: Adopting an adapter system makes installation onto the motor shaft easy.
- High reliability: Uses high-quality materials and features a robust design that withstands long-term use.
■ Specifications
Speed change method: Speed change via double-sheave design
Compatible motor output: 0.4kW to 3.7kW (4-pole)
Speed ratio: Max 1:2.4
Outer diameter: 155mm to 250mm
Material: High-durability alloy
Mounting method: Adapter system
■ Applications
- Industrial machinery: High-load speed change in automation lines, processing machines, etc.
- Agricultural machinery: Speed change mechanisms in tractors, harvesters, etc.
- Construction machinery: Use in heavy equipment such as cranes, excavators, etc.
- Transport machinery: Efficient speed change in belt conveyors and conveying systems.
The PF model single-type variable pitch pulley contributes to increased efficiency and improved precision in various industries.
