MIKI PULLEY (THAI) CO., LTD.

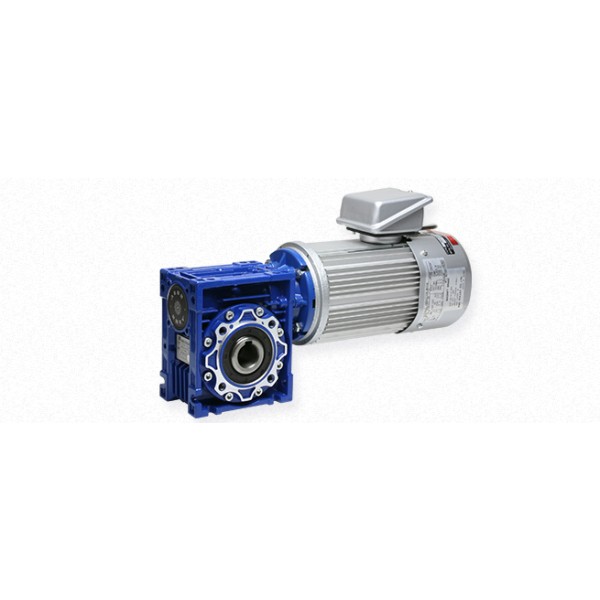

RWM(BS) Model: Optimal Solution for Built-in Brake Hollow Shaft Geared Motors (Thailand Miki Pulley)

The RWM(BS) model hollow shaft geared motor/reducer is a high-performance geared motor that incorporates a fail-safe brake. The brake instantly applies and holds when the power is cut off, and it is equipped with a release lever for manual brake disengagement. Additionally, a compact power supply unit is built into the terminal box, making wiring and handling simple. This significantly improves the safety and operability of the machine.
■ Features
- Fail-safe brake: Instantly applies and holds when power is cut off, ensuring safety
- Equipped with a release lever: Allows manual brake release
- Built-in power supply unit: A compact power supply unit is built into the terminal box, simplifying wiring
- Quiet operation: Achieves quiet operation due to the rotating part integrated with the motor shaft
- High responsiveness: The brake activates instantly upon power-off, supporting high-frequency start/stop operations
■ Specifications
Motor output: 0.2 kW to 1.5 kW (4 poles)
Power supply voltage: Three-phase 200 V / 50 Hz, 200 or 220 V / 60 Hz
Speed reduction ratio: 1/10, 1/20, 1/30, 1/40, 1/50, 1/60
Brake type: Fail-safe brake
Brake voltage: DC 90 V
Brake torque: 2 Nm to 15 Nm (varies by model)
■ Applications
The RWM(BS) model hollow shaft geared motor/reducer is ideal for controlling various industrial machinery, production lines, and precision equipment. It is particularly suitable for production sites requiring high-frequency start/stop operations and equipment where safety is paramount. Furthermore, its quiet operation and high responsiveness contribute to an improved operating environment.
The RWM(BS) model hollow shaft geared motor/reducer provides high safety and operability due to its built-in brake, delivering excellent performance in various applications.
