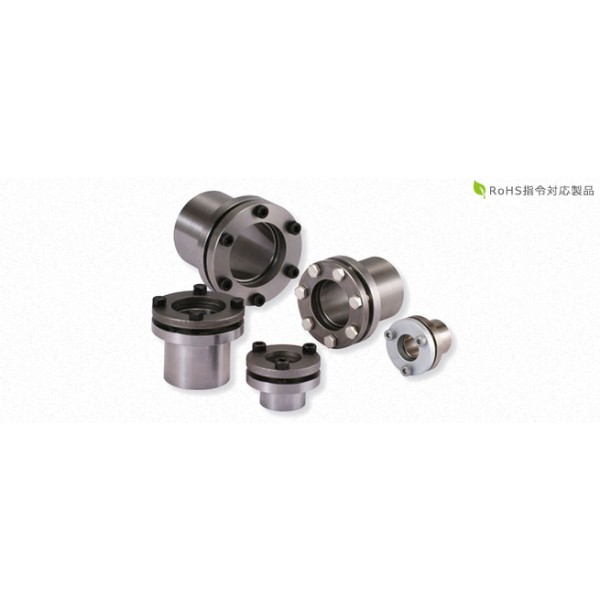

High-precision Hydraulic Shaft Lock ETP-A: Flange Face Coupling Posi-lock (Thailand, Miki Pulley)

Miki Pulley's hydraulic shaft lock ETP-A is a high-performance positive lock that can easily and quickly connect shafts and hubs by tightening clamping bolts located on the flange surface. Compared to conventional mechanical types, it allows tightening with fewer bolts and achieves high concentricity due to the absence of keyways. ETP-A is available in various variations, including standard steel specifications, electroless nickel plating specifications, and stainless steel specifications.
■ Features
High-Precision Connection: Achieves a high-precision connection with 0.05 mm concentricity, enabling accurate positioning.
Easy and Quick Installation: Achieves quick installation with fewer bolts using clamping bolts located on the flange surface.
Diverse Specifications: Offers variations such as standard steel, electroless nickel plating, and corrosion-resistant stainless steel.
High Environmental Resistance: Enhanced corrosion resistance with electroless nickel plating specifications and stainless steel specifications.
High Torque Transmission: Achieves high transmission torque through the wedge effect created by the grooves in the inner sleeve.
■ Specifications
Material: SCM415 or equivalent (standard type), Electroless nickel plating (corrosion-resistant type), SUS630 or equivalent (stainless steel specification)
Compatible Shaft Diameter: 15 mm to 100 mm
Maximum Torque: 15500 N・m
Maximum Thrust: 310000 N
Operating Temperature Range: -30℃ to 85℃
Concentricity: 0.05 mm
■ Applications
Machine Tools: Ideal for high-precision component processing.
Pumps: Achieves reliable power transmission.
Molding Machines: Supports delicate molding operations.
Printing Machines: Enables high-speed and high-precision printing.
Palletizing Robots: Supports high-efficiency operation in automated lines.
Various Jigs and Tools: Supports diverse processing and assembly tasks.
Miki Pulley's hydraulic shaft lock ETP-A combines high-precision connection with easy and quick installation, making it an optimal choice for industrial machinery and automation equipment.
