MIKI PULLEY (THAI) CO., LTD.

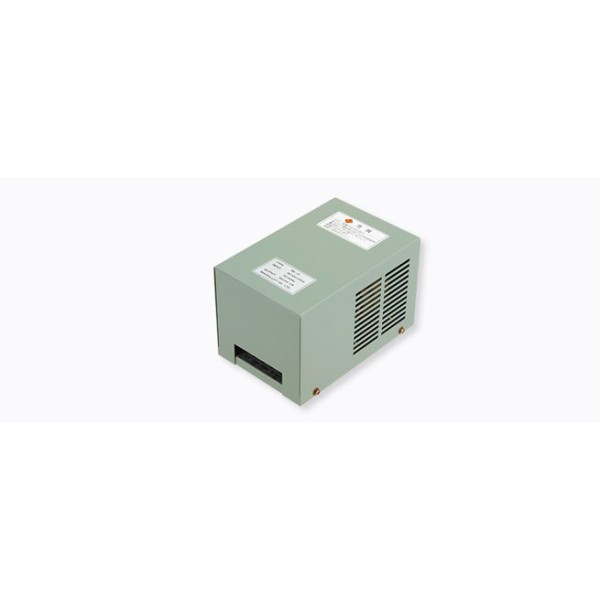

Power supply unit for electromagnetic clutches and brakes, BE model (Thailand, Miki Pulley)

Miki Pulley's Power Supply Unit for Electromagnetic Clutches and Brakes, BE Model, is a highly reliable basic model optimal for controlling electromagnetic clutches and electromagnetic brakes. It outputs a rated voltage of DC24V and can operate simply by connecting and inputting either AC100V or AC200V system voltage specifications. Because it outputs a DC24V voltage that is insulated and stepped down by a transformer and full-wave rectified, it features a robust and safe design, and maintenance is also easy.
■ Features
Reliable DC24V Output: Provides stable DC24V from AC100V and AC200V input
Robust Construction: Integrates transformer and rectifier compactly to ensure reliability and durability
Safety Design: Achieves high safety through insulation and step-down by transformer and full-wave rectification
Easy Connection: Simple structure that allows operation just by inputting power
Easy Maintenance: Compact design makes maintenance simple
■ Specifications
Input Voltage: AC 100V / 200V
Output Voltage: DC 24V
Capacity: 25W to 200W
Fuse Capacity: 1A to 5A
Dimensions: BE-05: 95x80x130 mm, BE-10: 105x90x160 mm, BE-20: 120x105x180 mm, BE-40: 130x105x230 mm
Operating Temperature Range: 0℃ to 50℃
Operating Humidity Range: 10% to 90% RH (non-condensing)
■ Applications
Machine Tools: Supports high-precision component processing
Pumps: Achieves reliable power transmission
Molding Machines: Supports delicate molding operations
Printing Machines: Enables high-speed, high-precision printing
Palletizing Robots: Supports high-efficiency operation in automated lines
Various Jigs and Tools: Supports diverse processing and assembly tasks
Miki Pulley's Power Supply Unit for Electromagnetic Clutches and Brakes, BE Model, provides reliability and safety, making it an optimal choice for various industrial machinery.
