MIKI PULLEY (THAI) CO., LTD.

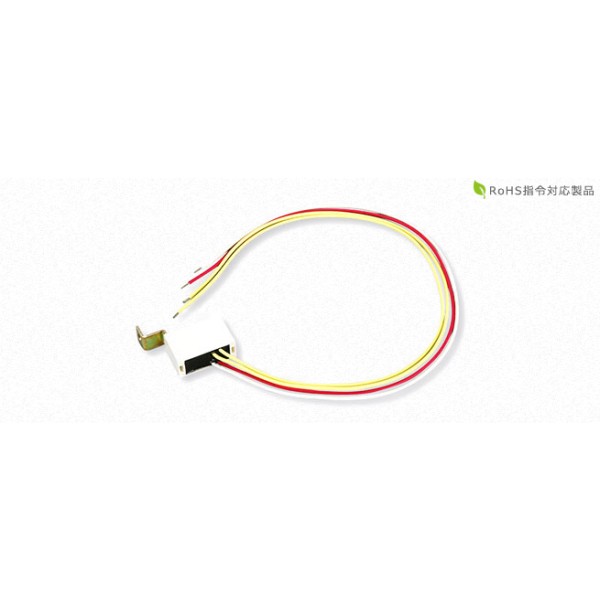

Compact Power Supply Unit for Non-Excitation Brakes, BEM Model (Thailand Miki Pulley)

Miki Pulley's power supply unit for electromagnetic clutches and brakes, the BEM model, is a compact power supply designed for fail-safe brakes. It can operate by simply connecting and inputting any of the AC100V, AC200V, or AC400V voltage specifications. Its resin molded case allows it to withstand harsh environments such as dust, providing high reliability despite being small and lightweight. It offers outputs of rated voltages DC45V, DC90V, and DC180V, supporting various industrial applications.
■ Features
Diverse Input Voltage: Supports AC100V, AC200V, and AC400V input, allowing use in various environments.
High Reliability: Stable operation even in harsh environments such as dust, thanks to the resin molded case.
Compact and Lightweight Design: Saves installation space and is easy to handle.
Simple Connection: Simple design that allows operation by simply inputting power.
High-Efficiency Output: DC45V, DC90V, and DC180V outputs support diverse applications.
■ Specifications
Input Voltage: AC100V / 200V / 400V
Output Voltage: DC 45V / 90V / 180V
Maximum Output Current: 1.0A
Maximum Output Capacity: 180W
Case Material: Resin Mold
Operating Environment: -10℃ to 50℃, 10% to 90% RH (non-condensing)
Dimensions: Refer to PDF for details as they vary by model
Mass: 0.5kg to 1.0kg
■ Applications
Machine Tools: Supports high-precision component processing.
Pumps: Achieves reliable power transmission.
Molding Machines: Supports delicate molding operations.
Printing Machinery: Enables high-speed, high-precision printing.
Palletizing Robots: Supports high-efficiency operation in automated lines.
Various Jigs and Tools: Supports diverse processing and assembly tasks.
Miki Pulley's power supply unit for electromagnetic clutches and brakes, the BEM model, combines high reliability with a compact design, making it an optimal choice for industrial machinery and automation equipment.
