MIKI PULLEY (THAI) CO., LTD.

Compact power supply unit for spring-applied brakes BEM(T) model (Thailand Miki Pulley)

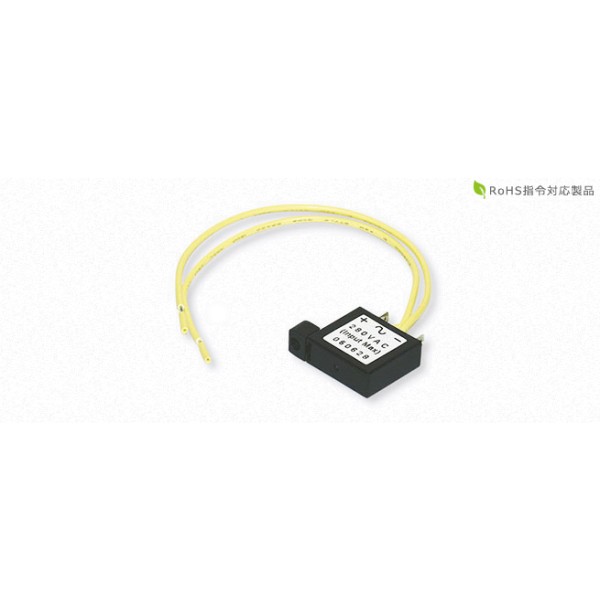

Miki Pulley's electromagnetic clutch/brake power supply unit BEM(T) model is an ultra-compact power supply unit designed for fail-safe brakes, capable of operating by simply connecting and inputting any of AC100V, AC200V, or AC400V voltage specifications. With its resin molded case, it can withstand harsh environments such as dust, and features an ultra-compact, thin design that allows for flexible installation. It provides outputs of rated voltages DC45V, DC90V, and DC180V, supporting various industrial applications.
■ Features
Diverse Input Voltage: Supports AC100V, AC200V, and AC400V input, allowing use in various environments.
High Reliability: Stable operation even in harsh environments such as dust, thanks to the resin molded case.
Ultra-Compact, Thin Design: Saves installation space and facilitates easy mounting.
Easy Connection: Simple design that operates by simply inputting power.
High-Efficiency Output: DC45V, DC90V, and DC180V outputs support diverse applications.
Flexible Mounting Direction: Input/output direction can be freely configured.
■ Specifications
Input Voltage: AC100V / 200V / 400V
Output Voltage: DC 45V / 90V / 180V
Maximum Output Current: 1.0A
Maximum Output Capacity: 180W
Case Material: Resin molded
Operating Environment: -10℃ to 50℃, 10% to 90% RH (non-condensing)
Dimensions: Varies by model, refer to PDF for details.
Mass: 0.5kg to 1.0kg
■ Applications
Machine Tools: Supports high-precision component processing.
Pumps: Achieves reliable power transmission.
Molding Machines: Supports delicate molding operations.
Printing Machines: Enables high-speed, high-precision printing.
Palletizing Robots: Supports high-efficiency operation in automated lines.
Various Jigs and Fixtures: Supports diverse processing and assembly tasks.
Miki Pulley's electromagnetic clutch/brake power supply unit BEM(T) model combines high reliability with an ultra-compact design, making it an optimal choice for industrial machinery and automation equipment.
