MIKI PULLEY (THAI) CO., LTD.

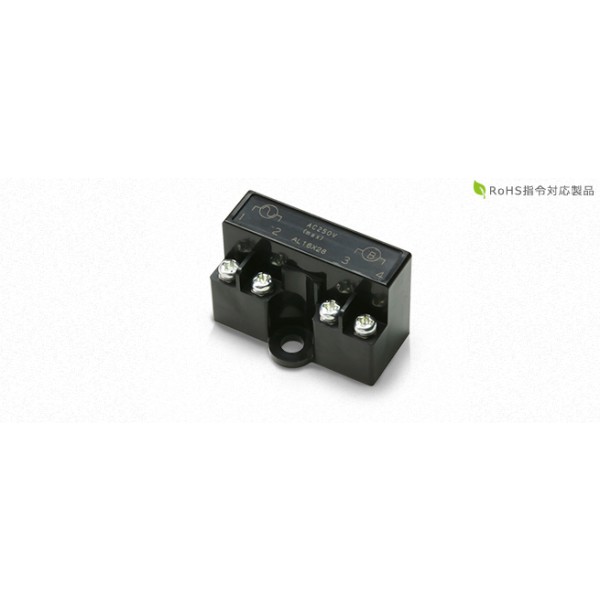

Compact Power Supply Unit for Non-Excitation Brakes BEW(S) Model (Thailand Miki Pulley)

Miki Pulley's power supply unit for electromagnetic clutches and brakes, the BEW(S) model, is a compact power supply unit for fail-safe brakes with rated voltages of DC45V, 90V, and 180V. The required DC voltage can be obtained simply by connecting and inputting any of the AC100V, AC200V, or AC400V voltage specifications. It features a compact and lightweight design, making it easy to handle. It is a terminal block type, offered as a simple power supply unit with only input and output terminals.
■ Features
Diverse Input Voltage: Supports AC100V, AC200V, and AC400V input, enabling use in various environments
High Reliability: Stable operation even in harsh environments with dust, etc., due to the resin molded case
Compact and Lightweight Design: Saves installation space and is easy to handle
Easy Connection: Terminal block type with DC output terminals for quick connection
Half-wave Rectification Method: Simple structure and low cost
■ Specifications
Input Voltage: AC100V / 200V / 400V ±10%, 50/60Hz
Output Voltage: DC 45V / 90V / 180V
Maximum Output Current: 1.0A
Maximum Output Capacity: 45W / 90W / 180W
Protection Functions: Overvoltage protection, overcurrent protection, overheat protection
Insulation Resistance: DC 500V, Megger 100MΩ (between terminals and body)
Dielectric Strength: AC 1000V, 50Hz, 1 minute (between terminals and body)
Operating Environment: -10℃ to +50℃, 10% to 90% RH (non-condensing)
Mass: 0.021kg
■ Applications
Machine Tools: Supports high-precision component processing
Pumps: Achieves reliable power transmission
Molding Machines: Supports delicate molding operations
Printing Machines: Enables high-speed, high-precision printing
Palletizing Robots: Supports high-efficiency operation in automated lines
Various Jigs and Tools: Supports diverse processing and assembly operations
Miki Pulley's power supply unit for electromagnetic clutches and brakes, the BEW(S) model, combines reliability and convenience, making it an optimal choice for various industrial applications.
