MIKI PULLEY (THAI) CO., LTD.

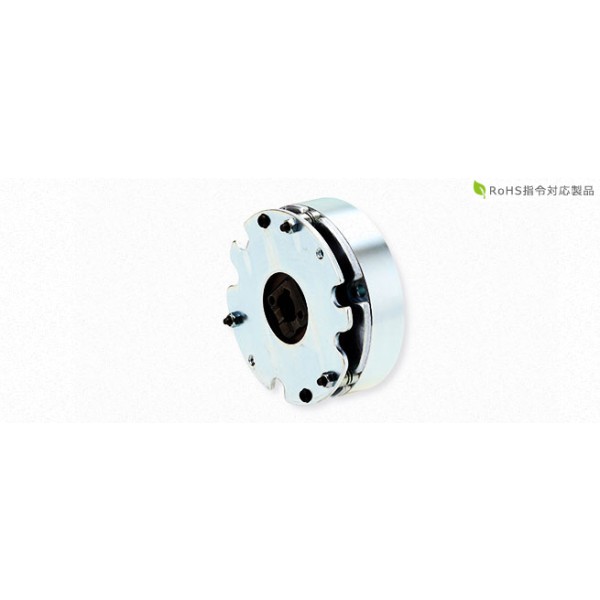

Compact, high-torque power-off brake BXH - Versatile (Thailand, Miki Pulley)

Miki Pulley's BXH spring-applied brake is a highly reliable brake dedicated to emergency braking and holding, delivering high braking torque despite its compact design. While having the same dimensions as the conventional BXL model, it possesses twice the braking torque. It is suitable for a wide range of applications such as various motors, articulated robots, actuators, machine tools, forklifts, aerial work platforms, hoists, electric carts, electric shutters, medical equipment, and wind power generators.
■ Features
High Torque Design: Achieves twice the torque compared to the BXL model of the same dimensions
Compact Size: Can be installed even in space-constrained environments
100% Initial Torque: Satisfies rated torque from initial use, eliminating the need for run-in operation
Low Noise: Low operating noise, maintaining a quiet environment
Long Lifespan: Durable design allows for long-term use
Multi-purpose Compatibility: Can be used in a wide range of fields such as various motors, industrial machinery, and mobile equipment
■ Specifications
Torque Range: 4 to 44 N·m
Operating Temperature Range: -10℃ to +40℃
Backlash: Minimal
Dimensions: Same dimensions as BXL model
Power Supply Voltage: DC24V, DC45V, DC90V, DC180V
Material: Uses high-durability materials
Quiet Design: Reduction of high-frequency friction noise through special armature
■ Applications
Various Motors: Provides high-precision holding and braking
Articulated Robots: Compact design ensures operating space for robots
Actuators: Ideal for actuators requiring precise control
Machine Tools: Optimal for use in machine tools requiring high torque
Forklifts / Aerial Work Platforms: Ensures safety with high braking force
Medical Equipment: Quiet and long-lasting, allowing for reliable use in medical settings
Wind Power Generators: Ideal for pitch drive systems of wind power generators
The BXH spring-applied brake, combining high torque and a compact design, supports a wide range of applications and enhances the safety and efficiency of various industrial machinery.
