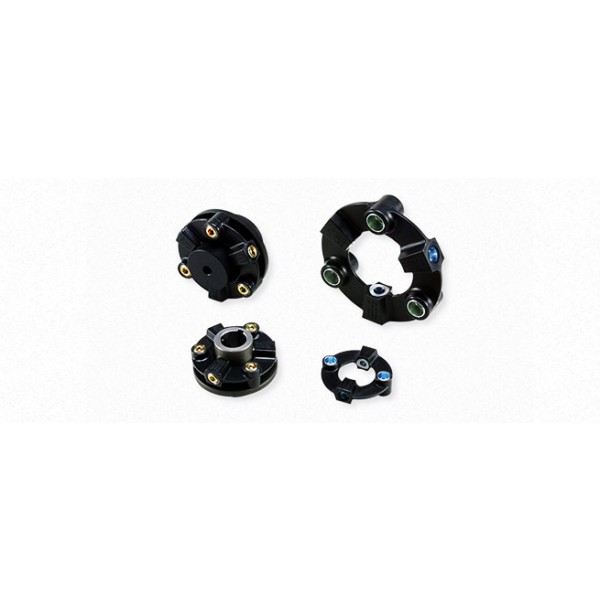

Centaflex (Rubber/Resin Coupling for Prime Movers) CF-X (Thailand Miki Pulley)

High-quality nylon resin is used for the damping element. This structure and element material are stiff in the torsional direction, and while possessing excellent flexibility in the radial and axial directions, there is no backlash. It achieves accurate power transmission while absorbing vibration and shock. The model has a simple structure consisting of an element (damping element), a cylindrical hub, a flange hub, and bolts for securing the element.
■ Features
High-quality nylon resin: Adopted for the damping element, achieving high durability.
Excellent flexibility: Stiff in the torsional direction, with excellent flexibility in the radial and axial directions.
No backlash: Achieves accurate power transmission.
Vibration and shock absorption: Extends machine life with excellent vibration absorption performance.
Simple structure: Easy to install with a simple structure consisting of an element, hubs, and bolts.
■ Specifications
Model: CF-X
Torque range: 10 to 500 N・m
Operating temperature range: -30℃ to +100℃
Element material: High-quality nylon resin
Mounting method: Bolt fixing
Backlash: None
Max rotational speed: 6000 min⁻¹
Misalignment absorption range: Parallel misalignment: ±0.5 mm, Angular misalignment: ±1.0°
■ Applications
Construction machinery: Machines requiring high durability
Agricultural machinery: Machines requiring vibration absorption
Marine vessels: Equipment that withstands use in harsh environments
Generators: Power generation equipment requiring stable power transmission
Special vehicles: Vehicles requiring high durability and reliability
Machine tools: Machines requiring high-precision power transmission
Testing machines: Testing equipment requiring accurate power transmission and vibration absorption
Wind power generation equipment: Power generation equipment requiring high durability and reliability
The Centaflex coupling CF-X is a high-durability coupling that uses high-quality nylon resin to achieve excellent vibration absorption and accurate power transmission. It is suitable for a wide range of machines and equipment, supporting various applications.
