MIKI PULLEY (THAI) CO., LTD.

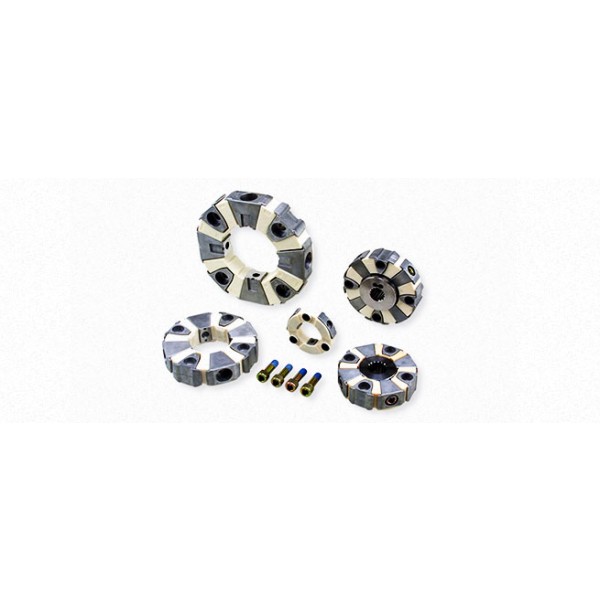

Centaflex (Rubber/Resin Coupling for Prime Movers) CF-H (Thailand Miki Pulley)

The Centaflex Coupling CF-H is a high-durability coupling that uses polyester resin with rubber-like elasticity, providing excellent vibration and shock absorption. It achieves heat resistance, cold resistance, and oil resistance not attainable with natural rubber, enabling reliable power transmission even in harsh environments. Furthermore, connection and separation of input/output are easy with only axial movement, simplifying maintenance. It supports a wide range of applications, including construction machinery, agricultural machinery, marine vessels, generators, special vehicles, machine tools, testing equipment, and wind power generation systems.
■ Features
High-quality polyester resin: Possesses rubber-like elasticity, achieving heat resistance, cold resistance, and oil resistance.
Excellent vibration and shock absorption: Effectively absorbs vibration and shock during power transmission.
Easy maintenance: Simple connection and separation of input/output with axial movement.
Backlash-free: Achieves high-precision power transmission.
High-durability design: Boasts a long service life even in harsh environments.
■ Specifications
Model: CF-H
Torque range: 20 to 2500 N・m
Operating temperature range: -40℃ to +120℃
Element material: Polyester resin
Mounting method: Bolt fixing
Maximum rotational speed: 5000 min⁻¹
Misalignment absorption range: Parallel misalignment: ±0.5 mm, Angular misalignment: ±1.0°
■ Applications
Construction machinery: Machinery requiring high durability
Agricultural machinery: Machinery requiring vibration absorption
Marine vessels: Equipment that withstands use in harsh environments
Generators: Power generation equipment requiring stable power transmission
Special vehicles: Vehicles requiring high durability and reliability
Machine tools: Machinery requiring high-precision power transmission
Testing equipment: Testing devices requiring accurate power transmission and vibration absorption
Wind power generation systems: Power generation equipment requiring high durability and reliability
The Centaflex Coupling CF-H is a high-durability coupling that uses high-quality polyester resin and offers excellent vibration and shock absorption. It is suitable for a wide range of applications and ideal for various machines and equipment.
