MIKI PULLEY (THAI) CO., LTD.

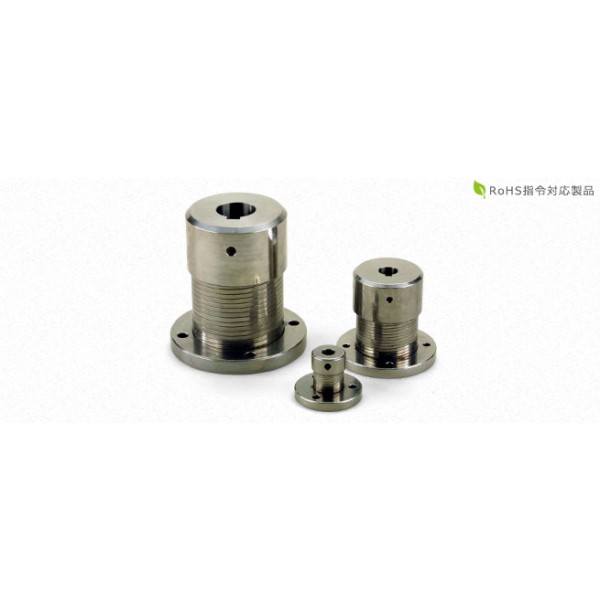

Baumannflex (Metal Coil Spring Coupling) MF (Thailand Miki Pulley)

The Baumann Flex Coupling MF is a compact coupling capable of high torque transmission, achieved by adopting a three-layer structure for its metal coil spring. This model is designed to meet a wider range of needs by having a flange structure on one side of its hub. The hub material uses SUM24L equivalent, and the coil spring material uses piano wire, providing high durability and reliability. It is suitable for various applications in mechanical design, ideal for printing machines, bookbinding machines, woodworking machines, semiconductor manufacturing equipment, and more.
■ Features
High Durability: Achieves high durability by using SUM24L equivalent for the hub material and piano wire for the coil spring.
High Torque Transmission: Enables compact size and high torque transmission due to the three-layer structure of the metal coil spring.
Flange Structure: One-sided hub with a flange structure for easy installation and versatile applications.
Compact Design: Small design allows for use in limited spaces.
High-Precision Power Transmission: Achieves stable power transmission with high precision.
■ Specifications
Model: MF
Torque Range: 10 to 500 N・m
Operating Temperature Range: -30℃ to +120℃
Element Used: Metal coil spring
Mounting Method: Flange structure
Maximum Rotational Speed: 6,000 min⁻¹
Misalignment Absorption Range: Parallel Misalignment: ±0.2 mm, Angular Misalignment: ±2°
■ Applications
Printing Machines: Equipment requiring high-precision power transmission
Bookbinding Machines: Machines requiring high-speed and stable operation
Woodworking Machines: Processing machines requiring high tension operation
Semiconductor Manufacturing Equipment: Equipment requiring precise control and high durability
Machine Tools: Machines requiring high-precision power transmission
Testing Machines: Testing equipment requiring accurate power transmission and vibration absorption
The Baumann Flex Coupling MF is a high-durability coupling that accommodates various applications due to its three-layer metal coil spring structure and flange structure. It is an optimal choice for mechanical design.
