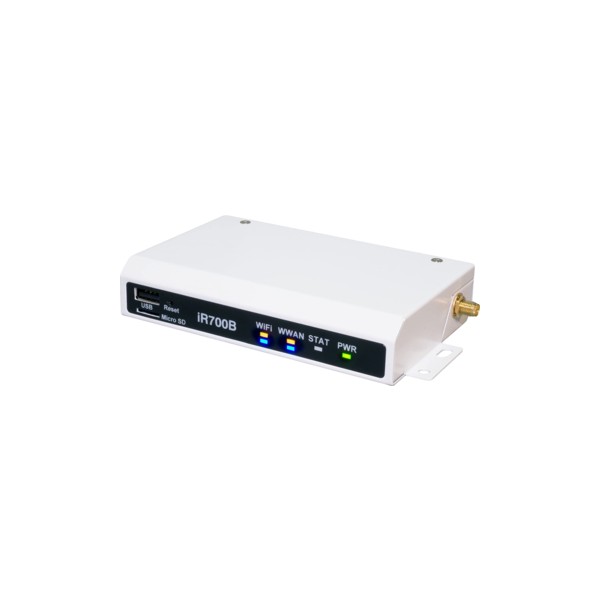

IoT Router iR700B-LTE4 Thailand

The iR700B series is an LTE-compatible IoM router with high environmental performance. In addition to LAN, WAN, and RS232/485, various external interfaces such as DIO, USB2.0, and microSD are installed. VPN connections using IPsec and L2TP, protocol conversion functions, and load balancing functions are also available. It complies with the vibration test standard for automotive parts (JIS D1601-1995) and the vibration and shock test for railway vehicle equipment (JIS E4031:2013).
Model Name: iR700B
Vendor Name: IDY Co., Ltd.
Specifications:
Wi-Fi: 2.4GHz IEEE802.11b/g/n (1T1R)
JIS Standards: Vibration standard JIS D1601:1995. JIS E4031:2013
External Interfaces: LAN x 3, WAN x 1, DIO x 1, RS232/485, USB2.0, microSD interface
External Buttons: Mode SW x 1, Reset SW x 1
Antenna: WiFi x 1, WWAN x 2 (SMA)
Power Supply: AC adapter (φ2.1 DC jack) AC100V-240V DC5V 3A ActivioIoT Store
Dimensions: 77.9 x 125 (145) x 24.8 (mm)
Weight: 275g (without antenna and AC adapter)
Power Consumption: Operating 5W (max) (LTE, WiFi, WAN, LAN)
Temperature: Operation: -10 to 60℃ (main unit), Storage: -20 to 70℃, Humidity: 10% to 95% Option: -20 to 60℃ (main unit) Please contact our sales department.
NBTCSDoC applied
