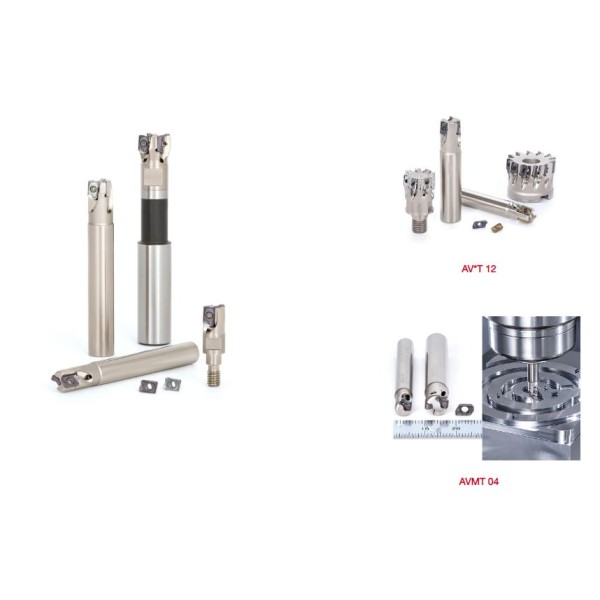

TungForce-Rec Square Shoulder Milling Cutter, a cutting tool for shoulder applications designed for small-scale work
TungForce-Rec is a shoulder milling tool for small-scale applications, designed for high precision and reliability. With V-shaped inserts and a high-rigidity structure, it enhances stability in the machining process, reducing vibration and insert movement. Additionally, its design, which enhances chipping resistance and strength, allows it to support machining a wide range of materials, from steel and aluminum alloys to heat-resistant materials, while providing excellent surface quality and wall accuracy with finely ground inserts.
■ Features
- Excellent Reliability
Utilizes V-shaped inserts that prevent insert movement during machining.
The inverted back-face design enhances insert strength.
M2 size screws provide stronger clamping force than M1.8 screws in previous models.
- Supports High-Precision Machining
Large cutting edge angle ensures smooth machining.
Reinforced cutting edge corners for increased durability.
Ground inserts improve wall accuracy and surface quality.
- Supports Various Materials
Two types of inserts available to support various materials such as steel, aluminum alloys, and heat-resistant materials.
■ Specifications
- Product Number: No. 506-J (General)
- Inserts: V-shaped design with enhanced strength.
- Screw Size: M2 (stronger than M1.8 model)
- Supported Materials: Steel, aluminum alloys, heat-resistant materials
■ Applications
- Shoulder milling
- Slotting
- Ramping
- Plunge and bore machining
- Side milling
TungForce-Rec is a shoulder milling tool for small-scale applications that combines precision and reliability in one tool. With its outstanding design and excellent durability, it supports various types of machining operations and effectively enhances production efficiency.
■ For more details, please download the PDF or feel free to inquire further.
