Measure High Accuracy with the CAG-2000 Air Micrometer

Achieve high-precision measurements with the versatile and efficient CAG-2000 Air Micrometer, designed for industrial quality control.

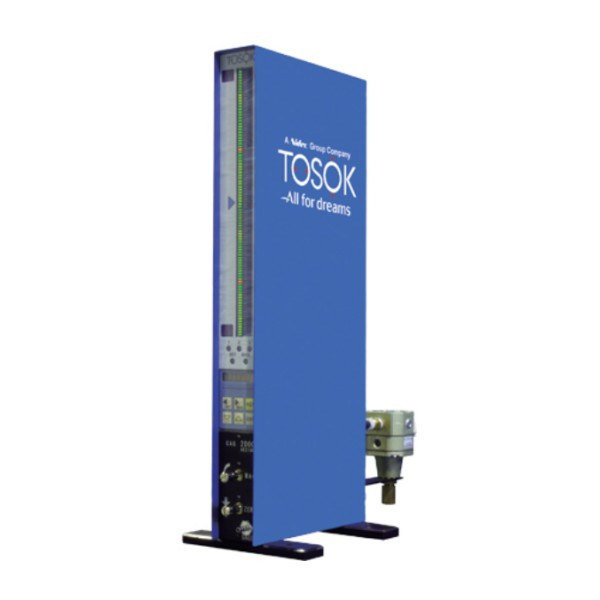

The CAG-2000 Air Micrometer is an advanced measuring instrument developed for precise, non-contact measurement of components in manufacturing and quality assurance processes. Combining air and electronic measurement technologies, it ensures accurate results for high-precision industries like automotive, aerospace, and electronics manufacturing. The compact design and intuitive interface make it suitable for a wide range of industrial applications.
■ Features
High Precision: Measures with resolutions as fine as 0.01 µm, ensuring reliable data for critical components.
User-Friendly Display: Features an 8-digit numerical display and a 101-segment color bar graph for quick visual analysis.
Automatic Calibration: Equipped with master gauge calibration for zero-point and full-scale adjustments.
Compact Design: Fits easily on workbenches and is stackable for multi-unit setups.
Program Storage: Stores up to 10 master settings for efficient repeat measurements.
Adjustable Sensitivity: Allows precise control of air flow for enhanced measurement accuracy.
Data Output: Supports serial communication for exporting data to external systems for analysis and reporting.
■ Specifications
Model Options:
CAG-2000-1CH (1 air channel)
CAG-2000-2CH (2 air channels)
Measuring Range Options:
±10 µm, ±20 µm, ±50 µm, ±100 µm, ±200 µm
Resolution Options:
As fine as 0.01 µm or 0.2 µm, depending on the model.
Input Voltage: 110V (60Hz) / 220V (50Hz)
Communication Port: Standard serial connection.
Dimensions: Compact with a width of 50 mm for space-saving installations.
■ Applications
Automotive Industry: Ensures precision in measuring engine components, gears, and shafts.
Aerospace Manufacturing: Critical for evaluating lightweight and high-precision parts.
Electronics Assembly: Ideal for measuring small and delicate parts in circuit manufacturing.
Quality Control: Enhances consistency and reduces errors in mass production processes.
The CAG-2000 Air Micrometer from Advic Co., Ltd. delivers unparalleled precision and flexibility, making it an essential tool for modern manufacturing.
