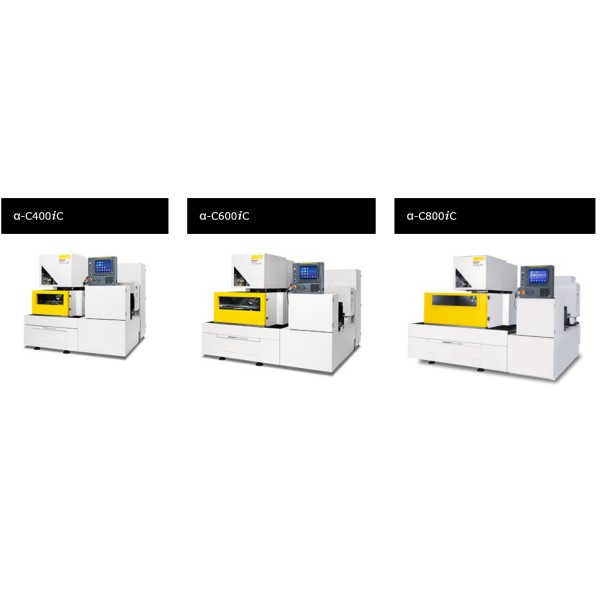

The ROBOCUT α-CiC Series provides precise and efficient machining.

The ROBOCUT α-CiC Series is a wire EDM (Electrical Discharge Machining) system renowned for its reliability and precision. Featuring a redesigned cast structure and advanced discharge and control systems, it supports a wide range of needs, from micro-machining to large component processing.
■ Features
High-Precision Machining: The improved cast structure enhances rigidity, achieving ±1μm accuracy over a 500mm pitch.
Advanced Discharge and Control Systems: Equipped with the new discharge unit SF3 and control system iPulse3, delivering surface finishes as smooth as Ra0.26μm.
Automatic Wire Feeding (AWF3): A simple yet highly reliable wire feeding mechanism that enhances feed rates and ensures long-term stable operation.
Ease of Use: With a high-performance CNC system and the new PANEL iH Pro display unit, intuitive and efficient operation is made possible, reducing drawing time by 75% compared to previous models.
■ Specifications
Machining Range:
α-C400iC: XY-axis 400×300mm, Z-axis 255mm
α-C600iC: XY-axis 600×400mm, Z-axis standard 310mm (optional 410mm)
α-C800iC: XY-axis 800×600mm, Z-axis standard 310mm (optional 510mm)
Supported Wire Diameter: Standard φ0.1–0.3mm (optional φ0.05–0.3mm supported)
Other Features: High maintainability, significantly reducing maintenance effort.
■ Applications
The ROBOCUT α-CiC Series is ideal for manufacturing press molds, injection molds, and precision parts. It excels in industries requiring high precision and fine machining, enabling efficient and accurate production processes.
The ROBOCUT α-CiC Series provides precise and efficient machining, contributing to enhanced productivity across various industries.
