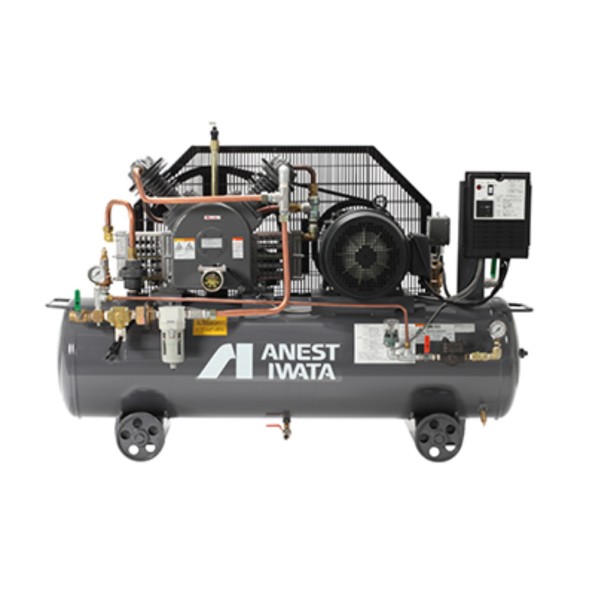

High-performance Booster Compressor TLBS Series Thailand Bangkok

A booster pump is a device for increasing the pressure of liquids or gases within piping systems. This enables liquids and gases to be delivered more efficiently to their intended destinations. Booster pumps are often used in water systems and air compression systems to boost existing pressure.
High-performance booster that meets all pressure needs and offers excellent mobility.
Features
The TLBS series is a booster compressor that offers high mobility and easy inspection. Equipped with a large-capacity tank and a secondary filter as standard, it boosts low-pressure air up to 3.0 MPa. Due to its exposed mechanical parts, it has high heat resistance, and with the use of lubricating oil, it combines efficient compression with durability.
Specifications
The TLBS series booster compressors include two models, TLBS55C30-S2 and TLBS75C30-S2, with motor outputs of 5.5 kW and 7.5 kW, respectively. The control pressure range is from 2.65 MPa to 3.00 MPa, and the discharge air volume at 50Hz is 1550 L/min and 1950 L/min. These specifications ensure high compression performance and efficiency.
For details, please download the PDF or feel free to contact us.

Category

Hydraulic & Pneumatic Equipment > Pneumatic Equipment > Air Tank
