Pocket Design in Carrier Tape ｜ Key to Pick-and-Place Accuracy in SMT

Learn why custom pocket design in carrier tape ensures accurate feeding, prevents component damage, and boosts SMT yield. A must-read for electronics manufacturers and buyers.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
1. What is a Pocket in Carrier Tape?

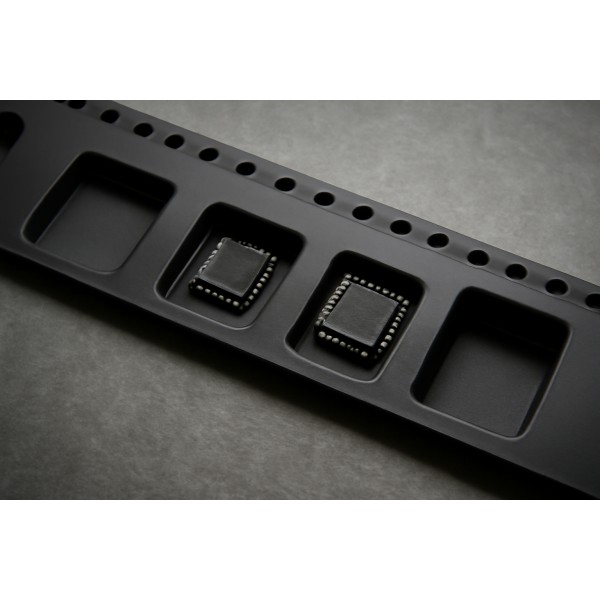

A pocket is the recessed cavity that holds each component (ICs, LEDs, capacitors, etc.). Proper pocket design ensures:
- Perfect fit and orientation
- Secure hold during vibration or winding
- ESD protection when needed
- Efficient vacuum pick-up access
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
2. Why Pocket Precision Matters
Even a 0.05 mm deviation can cause:
- ❌ Pick-up errors from misaligned components
- ❌ Rotation inside the pocket
- ❌ Poor vacuum due to missing vent hole
- ❌ Film tearing if walls are too thin
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
3. Key Pocket Design Elements
- Length x Width > 0.1–0.3 mm larger than component
- Depth > Deep enough to secure; shallow enough for pick-up
- R-Corners > Prevent stress & scratching
- Vent Hole > Required for vacuum access
- Wall Thickness > Avoid warping or cracking
- Pitch > Must match feeding index
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
4. Common Design Mistakes
- 🚩 Oversized pocket: component rotates
- 🚩 No R-corner: damages parts
- 🚩 No vent: suction fails
- 🚩 Thin wall: breaks during winding
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
5. Why Go Custom?
Standard pockets may not suit:
- Fragile or odd-shaped components
- Tight vision system tolerances
- High-speed pick-and-place requirements
Custom pockets:
- Reduce waste
- Enhance stability
- Improve pick-up accuracy
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
6. Choosing a Good Supplier
Choose a supplier that:
- ✅ Has in-house design engineers
- ✅ Provides mock-ups and drawings
- ✅ Offers JEDEC-compliant solutions
- ✅ Supplies inspection data with each lot
- ✅ Supports taping service and material options
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
7. THAI ISIX: Your Pocket Design Expert
THAI ISIX CO., LTD. is Thailand’s top specialist in high-precision carrier tape. Services include:
- Custom pocket development from component drawings
- Functional testing via in-house taping service
- Material choices: PS, PET, PC
- Full QA reports for every lot
If you need accurate, custom-fit tape to improve SMT yield, THAI ISIX is your trusted partner.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
