TOP JRB PUMPS INDUSTRY GROUP (THAILAND) CO., LTD. Technology/Service List Centrifugal Pump JRB-SE001｜Standard Model for Industrial Facilities
  • Centrifugal Pump JRB-SE001｜Standard Model for Industrial Facilities

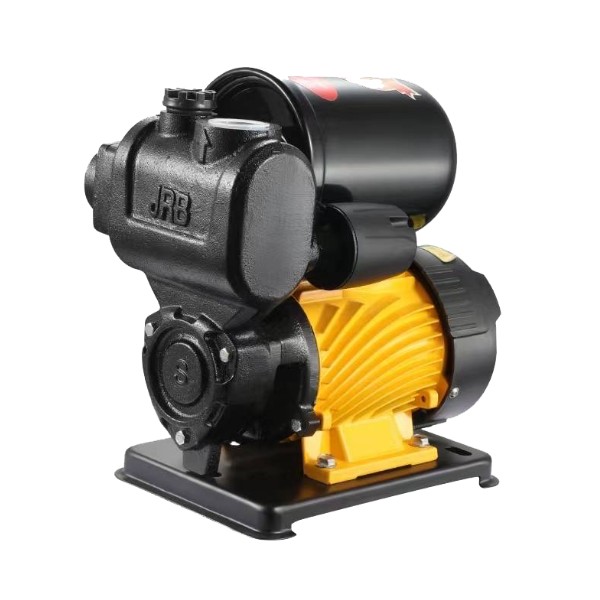

Centrifugal Pump JRB-SE001｜Standard Model for Industrial Facilities

■ Overview & ValueThe JRB-SE001 is a centrifugal pump designed for general factories and facilities. Its direct-coupled motor structure enables easy installation and convenient maintenance. With a pipe size range of 1.5–3 inches and a maximum flow rate of 933 liters per minute, it suits small to mid-sized production lines.
■ Technical Specifications
Models: DSM-60 / DSM-70
・ Power: 1100 W (DSM-60), 1500 W (DSM-70)
・ Voltage: 220V
・ Frequency: 50 Hz
・ Current: 7.6 A (DSM-60), 11 A (DSM-70)
・ Max Head: 27 m (DSM-60), 32 m (DSM-70)
・ Max Flow Rate: 400 L/min (DSM-60), 550 L/min (DSM-70)
・ Max Suction Lift: 8 m
・ Inlet/Outlet Diameter: 2 inches
・ Pump Weight: 21 kg (DSM-60), 23.6 kg (DSM-70)
・ Protection Class: IP44
・ Packaging Dimensions:
・ DSM-60: 425×245×320 mm
・ DSM-70: 480×245×305 mm
■ Structure & Key Components
・ 100% Copper Wire Motor with Thermal Overload Protection
・ Stainless Steel Impeller for corrosion and abrasion resistance
・ AISI 304 Stainless Steel Shaft for high rotational strength
・ Mechanical Seal to prevent leakage and overheating
・ Total of 24 internal components (as shown in exploded view)
■ Product Features
・ Compact structure for easy transport and installation
・ Quiet operation with low noise output
・ Compatible with various fluid types
・ Built to meet industrial standards
・ Efficient integration with general piping systems
■ Recommended Applications
・ Water supply systems in general factories
・ Cooling water circulation systems
・ Production lines requiring medium pressure
・ Water transport in commercial buildings
■ Why Choose JRB-SE001
・ Compact design with high-pressure capability
・ Durable motor with overload protection
・ Corrosion-resistant materials for impeller and shaft
・ Available in two models (DSM-60 and DSM-70) for usage flexibility
■ Delivery & Support in Thailand
For delivery arrangements or further technical inquiries regarding the JRB-SE001 in Thailand, please contact us via the form below.
※For more details, please contact us or download the product documentation using the link below.
