Suiden (Thailand) Co., Ltd.

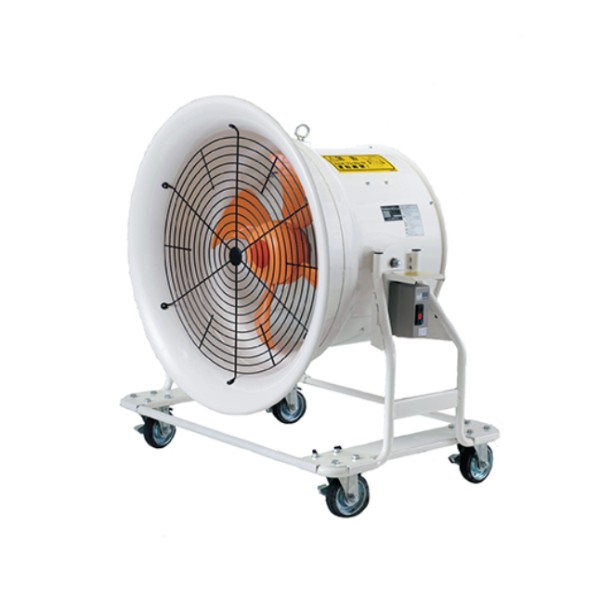

Energy-Saving Industrial Fan SJF-T604A-9B - Powerful 55m Airflow!

■ Overview The Suiden SJF-T604A-9B is a high-volume industrial fan designed for efficient ventilation and air circulation in factories, warehouses, and worksites. With a powerful airflow reaching up to 55 meters, it quickly replaces the air in large spaces. Additionally, its energy-saving design reduces power consumption by up to 13% compared to previous models, making it suitable for long-term use.
■ Features
- Powerful airflow reaching up to 55m for effective ventilation over large areas.
- Energy-saving design (up to 13% power reduction) lowers environmental impact and operational costs.
- Low-noise design (72dB) enhances workplace comfort.
- Adjustable tilt angle (180 degrees) allows flexible airflow direction control.
- Equipped with four caster wheels for easy movement and installation.
■ Specifications
- Power Supply: Three-phase 380V
- Power Consumption: 910W
- Rated Current: 2.35A
- Blade Diameter: 600mm
- Number of Blades: 4
- Motor Output: 1.5kW
- Motor Pole Number: 4
- Air Volume: 500m³/min
- Noise Level: 72dB
- Dimensions: Width 1066 × Depth 755 × Height 1177mm
- Power Cord Length: 2.0mm² × 4-core, 10m (plug sold separately)
- Weight: 90.0kg
■ Applications
- Factories and production sites: Improves air circulation and ventilation.
- Warehouses and logistics facilities: Helps manage temperature and ventilation during high temperatures.
- Construction sites and paint booths: Enhances work environments through air exchange.
- Agriculture and livestock: Facilitates air circulation in greenhouses and barns.
The Suiden industrial fan SJF-T604A-9B offers a combination of powerful airflow and energy efficiency, making it an ideal air circulation solution. It is the perfect choice for maintaining a comfortable working environment.
■ For more details, please download the PDF or contact us.
