HORN CUTTING TOOLS (THAILAND) CO., LTD.

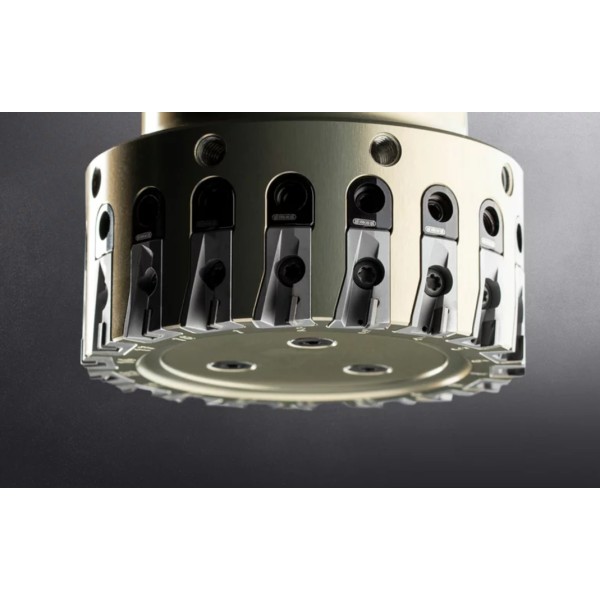

PCD Multi-Tooth Cutter DTM 1710

Paul Horn GmbH has developed the DTM 1710 milling system specifically for finishing non-ferrous metals and plastics containing abrasive fillers. This system enables high productivity and economic efficiency due to its capability for high feed rates. The precision laser-cut PCD (Polycrystalline Diamond) inserts ensure superior surface quality during finishing operations, attributed to the exactness of the PCD cutting edges, high-quality PCD substrate, and micro-precision axial run-out.
■ Features
Adjustable Cutting Edges: PCD cutting edges are brazed onto cassettes, allowing for fine axial adjustments via screws on the tool carrier. This design facilitates precise tuning for optimal performance.
High-Speed Capability: The cassettes are engineered to withstand centrifugal forces encountered at high rotational speeds, ensuring stability and safety during operation.
Increased Cutting Edges: Compared to similar tools on the market, the DTM 1710 offers a higher number of cutting edges for a given diameter, enhancing material removal rates and efficiency.
Lightweight Design: Constructed with an aluminum alloy milling body, the tool minimizes spindle wear and reduces overall machine load.
Enhanced Durability: A special surface treatment protects the cutter body from long-term abrasion caused by chips, extending the tool's lifespan.
Internal Coolant Supply: All variants feature an internal coolant supply directed precisely at the cutting edge, improving cooling efficiency and prolonging tool life.
■ Specifications
Available Diameters: 50 mm (10 teeth), 63 mm (14 teeth), 80 mm (18 teeth), 100 mm (24 teeth), and 125 mm (30 teeth).
PCD Cutting Material: Utilizes a sophisticated blend of diamond grain sizes, enhancing hardness, toughness, and cutting edge quality.
Balancing Features: Equipped with balancing holes around the cutter body to achieve high balancing accuracy when paired with the tool holder, essential for high-speed operations.
■ Applications
The DTM 1710 milling system is ideal for finishing operations on non-ferrous metals and plastics with abrasive fillers, commonly used in industries such as automotive, aerospace, and manufacturing of plastic components.
By integrating the DTM 1710 into your machining processes, you can achieve superior surface finishes, increased productivity, and enhanced economic efficiency.
