Efficient Packaging Operations with the NCB-HDL-250X Pillow Pack Machine (Thailand)

Advanced packaging technology that saves time and materials. Revolutionize productivity with the NCB-HDL-250X, achieving savings in time and resources.
Overview

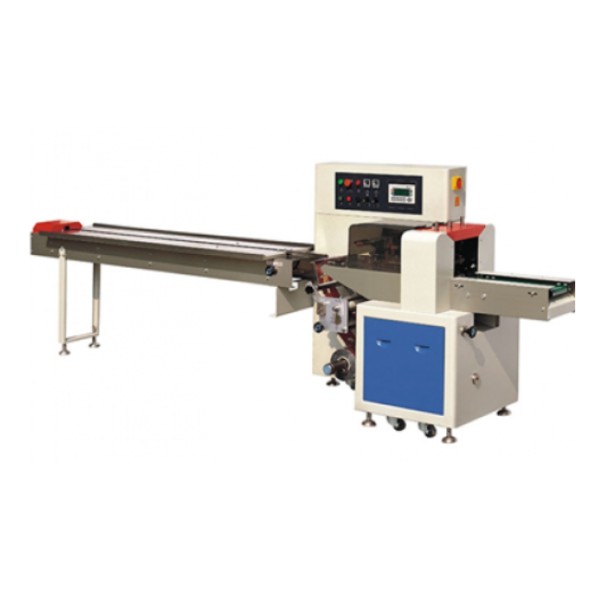

The NCB-HDL-250X Down Paper Pillow Pack Machine is a state-of-the-art machine designed for high-speed and efficient packaging operations. It accommodates a maximum film width of 250mm and can handle bag lengths of 69-190mm or 120-280mm, bag widths of 30-110mm, and a maximum product height of 40mm. The maximum film roll diameter is 320mm, with a packaging speed of 40-230 bags per minute. It requires a power supply of 220v 50/60Hz 2.4KW, with dimensions of 3920mm (length) x 670mm (width) x 1320mm (height), and weighs approximately 700KG.
Features
Dual frequency conversion control: Sets and cuts bag length in one step, saving time and film.
User-friendly interface: Easy and quick to set up and operate.
Self-diagnostic function: Clear fault display for easy troubleshooting.
High sensitivity photoelectric sensor: Allows for precise packaging with numerical input for cut and seal positions.
Independent PID temperature control: Offers temperature control for different packaging materials.
Position stop function: Prevents knife sticking and film wastage.
Simple drive system: Ensures reliable operation and easy maintenance.
Full control via software: Makes functional adjustments and technology upgrades straightforward.
Specifications
Type: HDL-250X
Film width: Maximum 250mm
Bag length: 69-190mm OR 120-280mm
Bag width: 30-110mm
Product height: Maximum 40mm
Film roll diameter: Maximum 320mm
Packaging speed: 40-230 bags/min
Power: 220v 50/60Hz 2.4KW
Machine size: (L)3920*(W)670*(H)1320mm
Machine weight: Approximately 700KG
The NCB-HDL-250X Pillow Pack Machine is designed to improve production efficiency and reduce costs in any industry where high-speed and precise packaging is required. With user-friendly operability and advanced features, it significantly enhances the quality and speed of packaging operations.
