Bhumisiam Supply Co.Ltd.
TOP Bhumisiam Supply Co.Ltd. Technology/Service List SQUARE SPUN MICRO PILE Size 18x18 cm.,Pile manufacturing plant Thailand
  • SQUARE SPUN MICRO PILE Size 18x18 cm.,Pile manufacturing plant Thailand

SQUARE SPUN MICRO PILE Size 18x18 cm.,Pile manufacturing plant Thailand

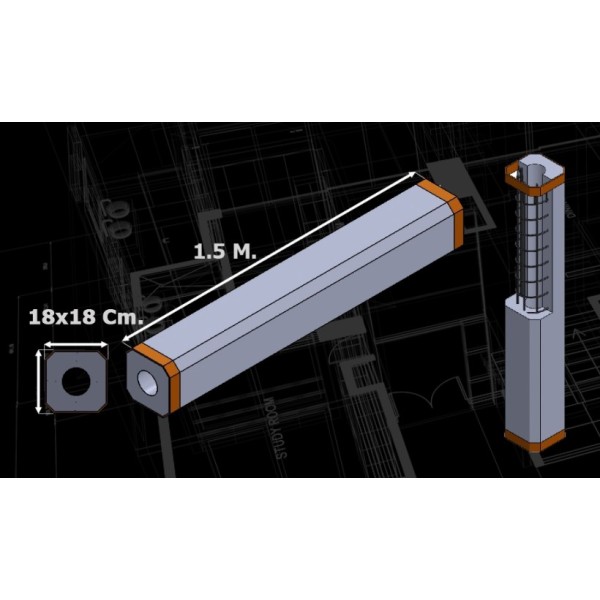

Square Spun Micro Pile Size 18x18 cm.
With a cross-sectional size of 18x18 cm, the pile has the ability to safely support a weight load of 15-20 tons per pile (depending on the soil conditions). Each section has a length of 1.5 meters and is equipped with a tensioning rib at the end. The Square Spun Micro Pile allows for the extension of length (depth) by connecting additional sections of Square Spun Micro Pile using the method of circumferential pile-to-pile welding, thus increasing the depth as required until reaching the firm soil layer. The safe weight load capacity can be verified through the Last 10 Blow Count or Dynamic Load Test methods.
- The first in Thailand to meet the standard of the Ministry of Communications for Square Spun Micro Pile.
- The first manufacturing factory of Spun Micro Pile in Thailand.
- Endorsed Brand by SCG, guaranteeing quality.
- The first in Thailand to utilize advanced computer systems in Spun Micro Pile production.
- Compressive strength values meet or exceed the Ministry of Communications requirements, with a minimum of 350 cylinder strength and 400 cube strength.
- Cold-rolled spiral wire with a diameter of 4 mm, wrapped around the lengthwise reinforcement.
- Lengthwise reinforcement (Vertical Rebar) with a diameter of 6 mm, quantity: 4 pieces.
- Production and concrete mixing using the same computer system program as SCG-CPAC.
(Dowel can be custom ordered according to customer's production size requirements).
