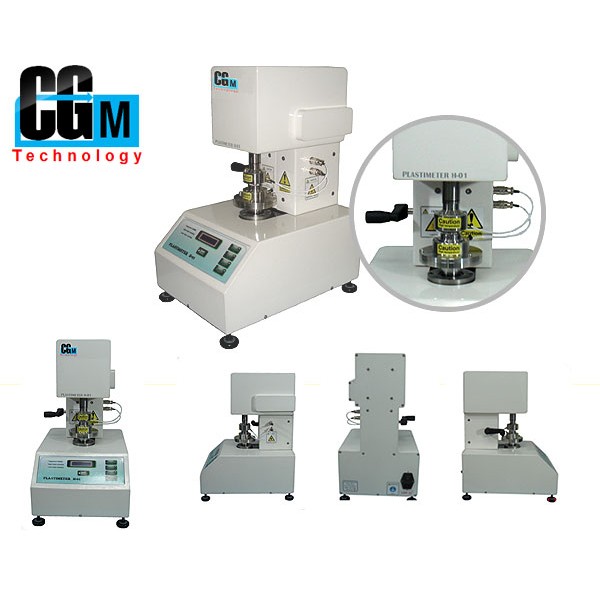

Plastimeter, Rubber and plastic quality measuring plant Thailand

The plastimeter is used to measure the plasticity and PRI of natural rubber. It is designed to be fast and easy to use. The machine has an automatic calibration system for the most accurate measurement.
Detail :
Features
1. LCD display, 16 characters, 2 rows
2. Calibrate the distance of the test head semi-automatically using a shim of 1.00 mm.
3. Able to calibrate the distance of the self-test probe by accessing the function self-calibrate
4. There are three modes available.
1) Standalone (display on the device) 2) Connect to the printer 3) Connect to computer
5. Able to use a computer program with the Mooney MV-01 (data receiver by CGM Technologies).
6. There is a temperature calibration certificate according to ISO 17025.
Features of Plastimeter H-01
♦ Standard: ISO 2007, ASTM D3194-99, BS 903: Pt. A59
♦ Test pressure: 100 ±1 Newton
♦ Die spacing: (DIE) 1.00 ± 0.01 mm
♦ Test time: preload 15 +1 sec, compression 15±0.2 sec.
♦ Measurement resolution: 0.1, 0.5 unit
♦ Machine display: 16-character LCD display, 2 rows
♦ Test range temperature: 100 ± 0.5 ºC
♦ Temperature setting resolution: 0.1 ºC
♦ Size of upper probe: 10.0 mm (7.3, 14.0 mm optional)
♦ Output: There is a RS232 port for connecting the printer and computer.
♦ Printer: Yes, a Thermal Pinter printer, paper size: 50 mm or 80 mm. (Optional)
♦ Distance of the die opening: 25–30 mm.
♦ External dimensions: 293 × 407 × 540 mm. (width × Depth × Height)
♦ Power: AC 220 Volts 2 Amp. 1 phase, 50/60 Hz
♦ Weight: 45 kg
