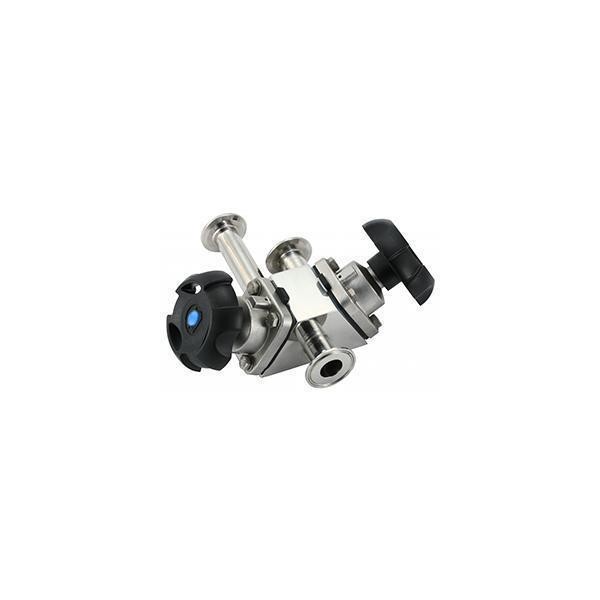

Multiport Diaphragm Valve Thailand

Product ID: Multiport Diaphragm ValveCombine difference Mutual flow port and flow angle, function for complete Diaphragm valve design.
CSE use purity Block or Bar material with High technical Precision Machining process for aseptic inner flow design.
Surface Finished:
Surface can be meet SF1 Ra
Assembly:
The multi-port direction valve body is convenient to connect to different tubing-lines which can save installation time and space, it can also be designed according to customized requirements as multi-angle or installing location.
Function:
Mostly used for sampling or production and steam applications. It can simplify the traditional valve combination configuration, and the design that can reduce the dead angle and ensure complete drainage to achieve the effect of sterilization.
Specifications
Material:
Body: Forged/316L
Diaphragm: EPDM+PTFE/NC or NO
Connection:
Clamp End/Weld End…
Body Type:
Direct Connection (Two Way)/Equal T / Reducing T/U-Point…
Operation:
Normal Open / Normal Close
Work Temp:
Diaphragm: EPDM+PTFE (-10ºC~150ºC)
Work Pressure:
Max: 10 Bar
Surface:
SF1: ID Polished to Ra≤0.5μm / SF4: EP Finished to Ra􀀀0.38μm
ID/OD Mirror Polished & ID Ra≤0.5μm / OD Sand Blasted…

Category

Medical equipment / Food industry machinery
