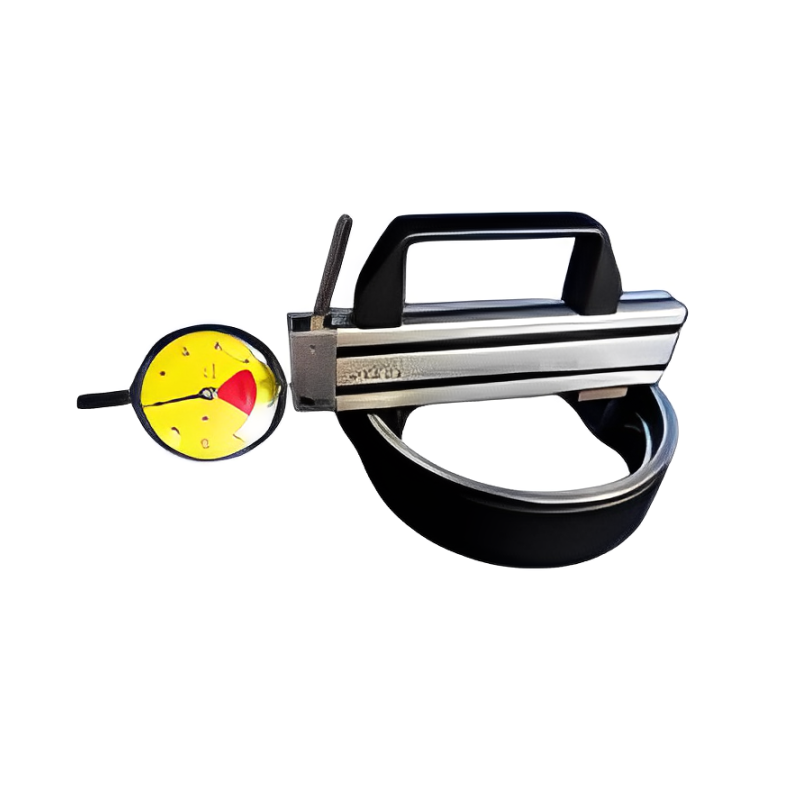

Sliding Caliper Gauge Precision Measurement Tool for Shafts, Steps & Diameters

Sliding Caliper Gauges provide stable, high-precision measurements for complex dimensions such as inner/outer diameters, depths, and steps—regardless of operator skill. Especially useful in QA processes and high-mix production lines, this customizable gauge supports consistent inspection for complex or small parts.

■ Accurate & Repeatable Measurement for Complex Shapes
In many Thai factories, general calipers often fail to provide the consistency required for quality inspections—especially for parts with intricate features. A Sliding Caliper Gauge solves this by offering a stable, intuitive solution tailored to the shape of your specific part.

■ Why Choose HANEDA (Thailand)’s Sliding Caliper Gauge?
We custom-manufacture gauges according to product shape, ensuring reliable and operator-independent results. Each unit is built with attention to Japanese quality standards and verified through CMM inspection.

■ Applicable Industries
・ Automotive: bearing housings, engine mounts, metal holders
・ Precision machinery: jigs, shafts, stainless pins
・ Medical devices: ribbed parts, stepped housings
・ Quality control teams: standardizing inspection processes

■ Product Highlights
・ Accuracy: Custom-fit design for high measurement repeatability
・ Applications: Inner/outer diameters, steps, depth, groove width, part thickness
・ Materials: SUS304, S45C, aluminum, POM, MC nylon
・ Measurement method: Manual sliding with dial gauge, stopper mechanism
・ User-friendly: Consistent results, regardless of operator experience

■ Manufacturing Flow
・ Design from customer’s 3D model or sample
・ Full in-house production: CNC, wire EDM, grinding
・ Delivered with inspection report after CMM validation
・ Flexible designs: single-hand or table-mounted use

■ Why Produce in Thailand?
・ Japanese-grade quality at local Thai production cost
・ Fast delivery: 5–10 business days post design confirmation
・ Multilingual support: Thai, English, Japanese
・ After-sales: Local support for revisions, repairs, and redesigns

■ Common Use Cases
・ Simultaneous diameter & step check for shafts (±0.01mm)
・ Gauge for filter case inner diameter with depth stop
・ Single-motion depth & width gauge for resin housings
・ Die-cast part gauge: outer diameter, flatness, step in one check

■　For more details, please download the PDF or feel free to contact us.
