HANEDA (THAILAND) CO., LTD.

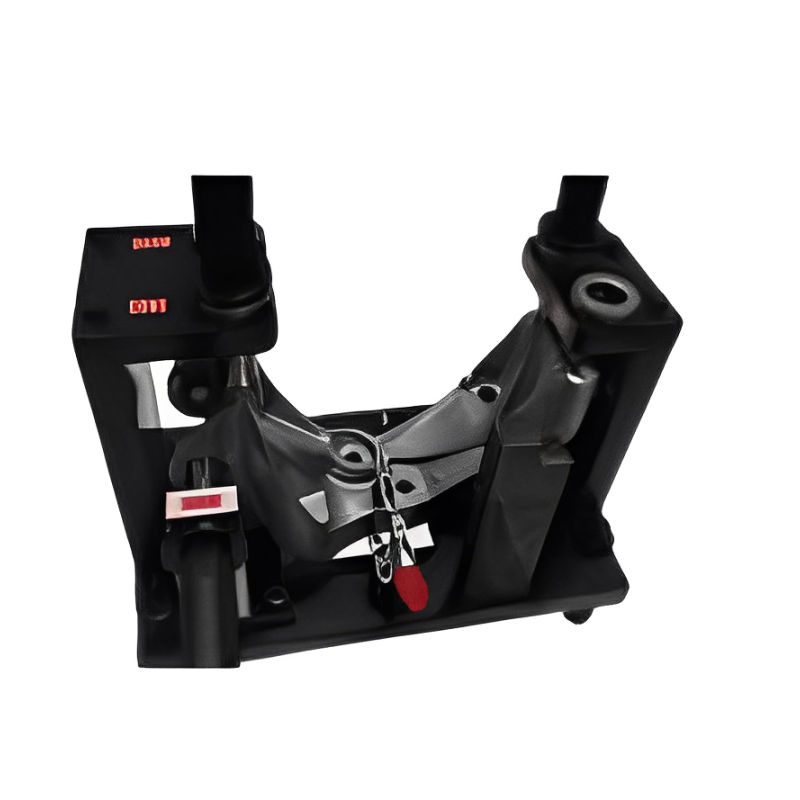

Position Gauge ±0.01 mm Accuracy for Shaft & Mounting Hole Alignment in Assembly Lines

Position Gauges are critical for inspecting shaft and mounting hole alignment during assembly. HANEDA (Thailand) manufactures custom gauges for mass production lines, providing ±0.01 mm precision to help prevent vibration, malfunction, or assembly defects in automotive and electronic parts.

■ Accurate Positioning to Prevent Assembly Defects
In Thai factories producing automotive and electronic components, even minor misalignment in shafts or mounting holes can lead to noise, wear, or operational failure. A high-precision position gauge ensures accurate hole-to-hole and shaft-to-bracket positioning during inspection, improving long-term product reliability.

■ Key Features
・ Position accuracy: ±0.01 mm
・ Suitable for mass production QC environments
・ Materials: rigid and lightweight aluminum or stainless steel (SUS)
・ Compatible with dial gauges or block gauge setups
・ Custom design based on 2D/3D drawings or actual parts

■ Common Applications
・ Checking shaft center alignment in engine and gear assemblies
・ Verifying mounting hole positions on brackets, covers, and plates
・ Ensuring fit accuracy for mold base components and precision electronics
・ Inline inspections for mass production or final assembly lines

■ Manufacturing Workflow
・ Analysis from customer drawing or sample
・ 3D CAD design → Visual confirmation → CNC fabrication
・ High-precision machining: CNC, wire EDM, grinding
・ Final check with CMM and delivery report included

■ Thai-Based Production Benefits
・ Japanese-engineered QC and design oversight
・ Fast delivery: 7–10 business days from final design approval
・ Multilingual support: Thai / English / Japanese engineers
・ Logistics: Domestic and overseas shipping options

■　For more details, please download the PDF or feel free to contact us.
